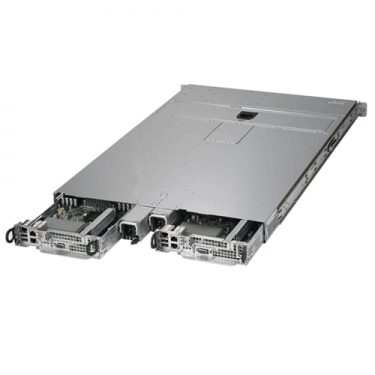

  • Supermicro SYS-1028TP-DTFR Angle
  • Supermicro SYS-1028TP-DTFR Top
  • Supermicro SYS-1028TP-DTFR Front
  • Supermicro SYS-1028TP-DTFR Rear

Supermicro SYS-1028TP-DTFR 1U TwinPro MultiNode

Call for price.
SKU:SYS-1028TP-DTFR

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 slot"
• Single port IB (FDR, 56Gbps), w/ QSFP connector
• Intel® i350 Dual port GbE LAN
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 4x 2.5" Hot-swap SATA3 drive bays
• 1000W Redundant Power Supplies itanium Level (96%)

Details

Superworkstation SYS-1028TP-DTFR

Supermicro SYS-1028TP-DTFR 1U TwinPro Rackmount MultiNode Barebone Server. Features dual hot-swap nodes, and redundant compact power supply. The 1U TwinPro also offers
improved serviceability with cableless nodes and easy access. Optimized for high-end Enterprise, HA Storage Head Node, and Security Appliances. Designed for optimum performance
and continuous operation at maximum capacity.
Product SKU
• SuperServer 1028TP-DTFR (Black)
Motherboard
        Super X10DRT-PIBF
Processor/Cache
CPU • Dual Socket R3 (LGA 2011)
• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required




* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
Infiniband • Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller
SATA • SATA3 (6Gbps) w/ RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output (per node)
SATA

• 4x SATA3 (6Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

Infiniband • 1x external QSFP Infiniband connector
USB

• 2x USB 3.0 ports (rear)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header (internal)

Others

• 1x SATADOM support on the motherboard















Chassis
Form Factor • 1U Rackmount
Model CSE-809H-R1K05
Dimension and Weight
Height • 1.7" (43mm)
Width • 19.1" (485mm)
Depth • 29.5" (750mm)
Gross Weight • 48.1 lbs (21.9 kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• Network activity LED
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-E

• 1x PCI-E 3.0 x16 Low-profile slot

0 slot • 1x "0 slot" (x16)
Drive Bays (per node)
Hot-swap

• 4x 2.5" Hot-swap SATA3 drive bays

System Cooling (per node)
Fans

• 3x heavy duty counter rotating fans with air shroud and optimal fan speed control

Power Stick Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 38 x 40 x 360 mm
Input • 100-127Vac / 9-7.5A / 50-60Hz
• 200-240Vac / 6-5A / 50-60Hz
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
+5Vsb • Max: 4A / Min: 0A
Output Type • Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification • Titanium Level
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
