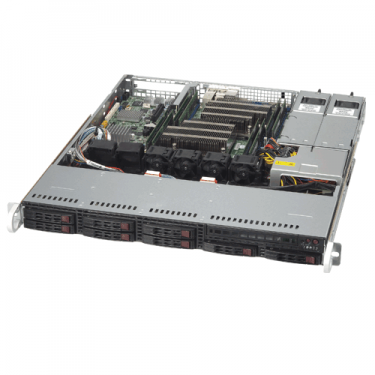

  • Supermicro SYS-1028R-MCTR  Angle
  • Supermicro SYS-1028R-MCTR  Front

Supermicro SYS-1028R-MCTR 1U SuperServer Rackmount NVME

Call for price.
SKU:SYS-1028R-MCTR

Quick Overview:

Key Features:
• Data Center Optimized
• 2x 10GBase-T Ports
• Short Depth
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 1x PCI-E 3.0 x8 (FHHL) slot
• 8x 2.5" Hot-swap SAS3/SATA3 Drive Bays
• Intel® i210 Dual-Port 1GbE LAN Intel® X540 Dual-Port 10GBase-T LAN
• SAS3 (12Gbps) via LSI 3108
• I/O ports: 1x VGA, 2x USB 3.0
• 600W Redundant High-Efficiency, Power Supplies, Platinum Level Certified
• Optional 2x 2.5" NVMe Drives Support
• 2x SuperDOM (Disk on Module) ports
• IPMI 2.0 + KVM with Dedicated LAN

Details

Supermicro SYS-1028R-MCTR

Supermicro 1028R-MCTR 1U Rackmount Barebone with 600W Redundant High-Efficiency Power Supplies Platinum Level Certified, Intel® C612 chipset support 8x 2.5" Hot-swap
SAS3/SATA3 Drive Bays using Supermicro Super X10DRL-CT Server Motherboard and CSE-113MFAC2-R606CB 1U Rackmount Chassis.
Product SKU
• SuperServer 1028R-MCTR (Black)
Motherboard
       Super X10DRL-CT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via LSI 3108
• RAID 0, 1, 5, 6, 10, 50, 60 support
• 2GB DDR3 Cache
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity • Intel® X540 10GBase-T controller
• Intel® i210 Gigabit Ethernet controller
• Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Input/Output
SAS • 8x SAS3 (12Gbps) ports
SATA • 6x SATA3 (6Gbps) ports
• I-SATA 4 & I-SATA 5 support SATA DOM
LAN • 2x RJ45 10GBase-T LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 4x USB 3.0 ports (2 rear, 2 headers)
• 3x USB 2.0 ports (2 headers, 1 Type A)
Video • 1x VGA port
Serial Header Port • 1x COM port (1 header)
DOM • 2x SuperDOM (Disk on Module) ports
Management
Software • Intel® Node Manager 3.0
• IPMI 2.0
• SuperDoctor® 5
• SSM
• SPM
• SUM
• Watch Dog
Power Configuration • ACPI Power Management
• Power-on mode for AC power recovery
Chassis
Form Factor • 1U Rackmount
Model • CSE-113MFAC2-R606CB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 19.98" (508mm)
Gross Weight • 40 lbs (18.15 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset Button
• UID button
LED • Power Status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express • 1x PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot Swap • 8x 2.5" Hot-swap SAS3/SATA3 Drive Bays
Peripheral Device
DVD-ROM • 1x Slim DVD-ROM drive (optional)
Backplane
  • SAS3/SATA3 Backplane
• Optional 2x 2.5" NVMe drives
System Cooling
Fans • 4x 4cm fans with optimal fan speed control
Power Supply with Power Distributor
  600W Redundant High-Efficiency Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input • 100-240V, 50-60Hz, 7.5-3.0A
DC Output • +5V standby: 3A
• +12V: 50A
Certification • Platinum Certified (94%)
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• PCI 2.3
• ACPI 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
