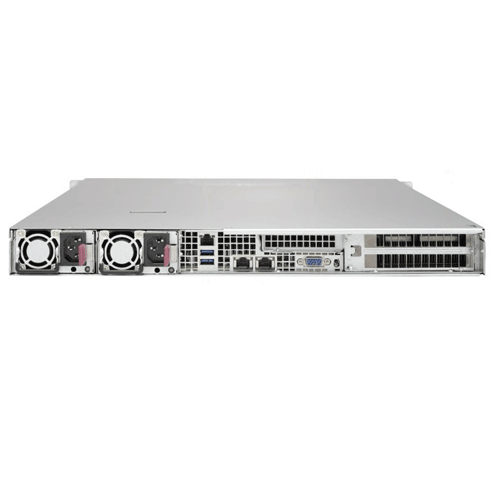

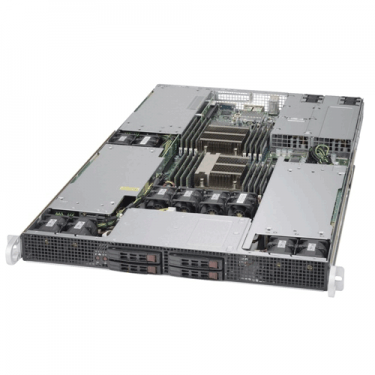

Supermicro SYS-1028GR-TRT
Supermicro 1028GR-TRT 1U Rackmount Server Brebone with 1600W Redundant Power Supplies Platinum Level (94%+), 4x Hot-swap 2.5" SATA3 Drive Bays using
Supermicro Super X10DRG-HT Server Motherboard and CSE-118GH-R1K66B 1U Rackmount Chassis.
Supermicro Super X10DRG-HT Server Motherboard and CSE-118GH-R1K66B 1U Rackmount Chassis.
Product SKU |
|
---|---|
SYS-1028GR-TRT | • SuperServer 1028GR-TRT (Black) |
Motherboard |
|
---|---|
Super X10DRG-HT |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
Note | • † BIOS version 2.0 or above is required |
• Please contact WillJaya Technical support for additional information | |
GPU/Xeon Phi Support |
• K1/K2/K10/K40/K80/M40/M60/Xeon Phi |
System Memory |
|
---|---|
Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
Network Connectivity | • Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Video | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
SATA | • 10x SATA3 (6Gbps) ports |
LAN |
• 2x RJ45 Gigabit Ethernet ports • 1x RJ45 Dedicated IPMI LAN port |
USB |
• 4x USB 3.0 ports (2 rear, 2 via header) • 2x USB 2.0 ports (2 via headers) |
Video | • 1x VGA Connector |
Serial Port | • 1x Serial header |
System Bios |
|
---|---|
BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS |
BIOS Features | • Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-118GH-R1K66B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 30.6" (777mm) |
Gross Weight | • 48 lbs (21.8 kg) |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 4x PCI-E 3.0 x16 slots
(3x GPU/Xeon Phi cards optional) |
Drive Bays |
|
---|---|
Hot-swap | • 4x 2.5" Hot-swap drive bays |
System Cooling |
|
---|---|
Fans | • 10x counter-rotating fans with optimal fan speed control |
Power Supply |
|
---|---|
1600W 1U Redundant Power Supplies with PMBus | |
Total Output Power | • 1000W/1600W |
Dimention (W x H x L) |
• 73.5 x 40 x 265 mm |
Input | • 100-127Vac / 12.9A Max / 47-63Hz • 200-240Vac / 9.5A Max / 47-63Hz |
+12V | • Max: 82A / Min: 0.1A (100-127Vac) • Max: 132A / Min: 0.1A (200-240Vac) |
12V SB | • Max: 2A / Min: 0.2A |
Output Type | • 25 Pairs Gold Finger Connector |
Certification | • Platinum Certified |
PC Health Monitoring |
|
---|---|
CPU |
• Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • 5 Phase-switching voltage regulator |
FAN | • Total of ten 4-pin PWM fans • 10x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED |
Other Features | • SDDC Support |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
