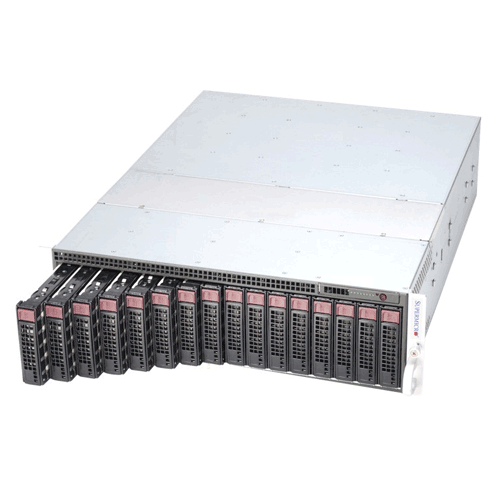

Supermicro SuperServer SYS-5038ML-H8TRF
Product SKU |
|
---|---|
SuperServer | • SYS-5038ML-H8TRF |

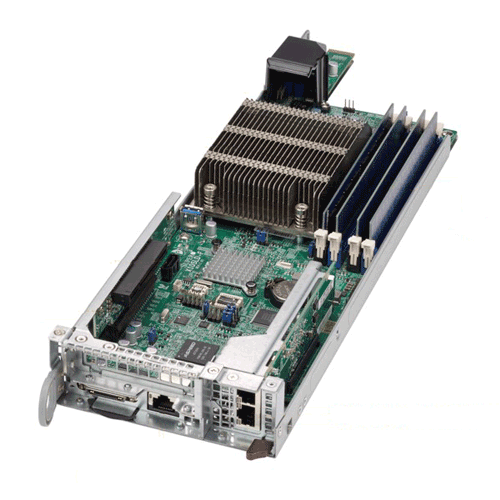

Motherboard |
|
---|---|
Super X10SLD-F |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors • Up to 84W • Socket H3 (LGA 1150) |
System Memory (per node) |
|
---|---|
Memory Capacity | • 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
Memory Type | • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs |
DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
Memory Voltage | • 1.5 V, 1.35 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
Expansion Slots (per node) |
|
---|---|
PCI-Express | • 1x PCI-E 3.0 x8 Low-profile slot • 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional |
Network Devices (per node) |
|
---|---|
Micro-LP NIC | • Intel® i350 GbE controller • Dual RJ-45 connectors • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/O Acceleration Technology (I/O AT) • MicroLP Adapter Matrix (Networking options) |
On-Board Devices (per node) |
|
---|---|
Chipset | • Intel® C224 PCH chipset |
SATA | • 1x SATA DOM • 2x SATA3 (6Gbps) w/ RAID 0 and 1 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2400 BMC |
Graphics | • ASPEED AST2400 Graphics (BMC with Graphic controller) |
Input / Output (per node) |
|
---|---|
SATA | • 2x SATA3 (6Gbps) ports |
LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
DOM | • SATA DOM (Disk on Module) power connector support |
KVM | • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle) |
System BIOS |
|
---|---|
BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |

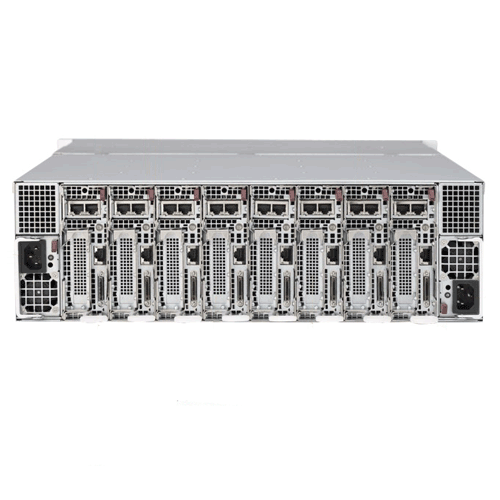

Rear Window (per node) |
|
---|---|
Switch | • Power / UID |
Chassis |
|
---|---|
Form Factor | • 3U |
Model | • CSE-938BH-R1620B |
Dimension & Weight |
|
---|---|
Height | • 5.21" (132.5 mm) |
Width | • 17.26" (438.4 mm) |
Depth | • 23.2" (589 mm) |
Gross Weight | • 88 lbs (39.92 kg) |
Available Colors | • Black |

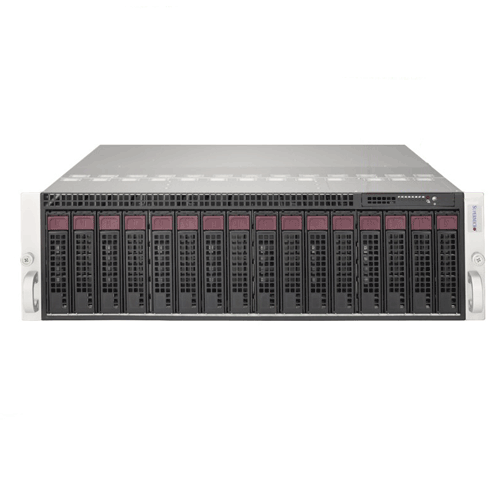

Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Node status LED |
Drive Bays (per node) |
|
---|---|
Internal | • 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total • Enterprise SATA HDD only recommended |
System Cooling |
|
---|---|
Fans | • 4x 8cm Heavy duty fans with optimal cooling zone |
Power Supply |
|
---|---|
• 1620W high-efficiency redundant power supply w/ PMBus | |
AC Input | • 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
DC Output | • 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/150A; +5Vsb/4A |
Certification | • Platinum Certified |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
FAN | • Cooling zone |
Temperature | • Monitoring for CPU and chassis environment |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
