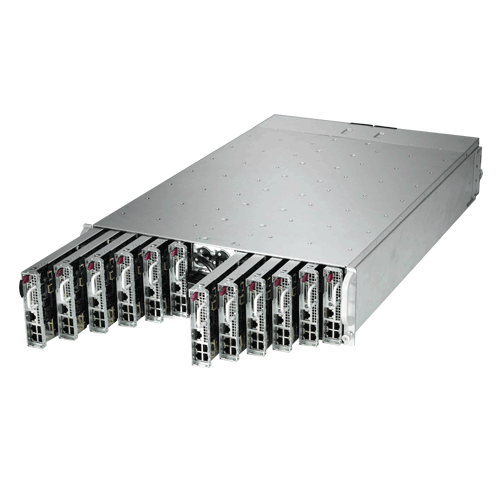

  • Supermicro SuperServer SYS-5038ML-H24TRF - Angle

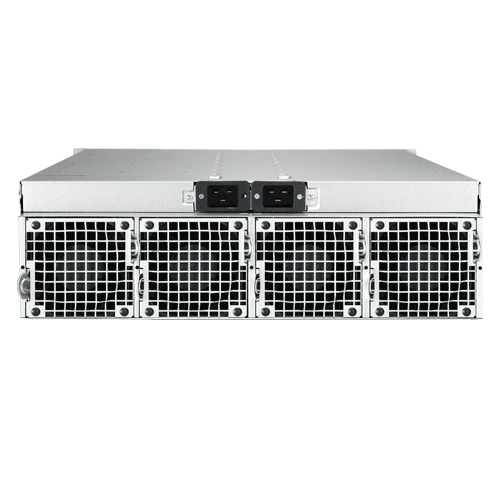

  • Supermicro SuperServer SYS-5038ML-H24TRF - rear

Supermicro SuperServer SYS-5038ML-H24TRF (Complete System Only)

Call for price.

Quick Overview:

Key Features:
• 2 Nodes per Tray
• Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™
   processor family; Socket H3 (LGA 1150) up to 80W
• Up to 32GB DDR3 VLP ECC UDIMM 1600MHz support in 4 sockets
• 4x GbE LAN (Intel i350), 1x Shared LAN for IPMI Remote Management
• Shard 1x VGA, 1x COM ports, 2x USB 2.0 (with KVM dongle)
• 4x 9cm heavy duty hot-swap fans with optimal cooling zone (per system)
• 2000W Redundant power supplies Platinum Level Certified (per system)


Supermicro SuperServer SYS-5038ML-H24TRF (Complete System Only)
Product SKU
• SuperServer SYS-5038ML-H24TRF
       Super X10SLE-DF
CPU • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family
• Up to 80W
• Socket H3 (LGA 1150)
System Memory (per node)
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 VLP ECC
Memory Type • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes • 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset • Intel® C224 PCH chipset
SATA • 4x SATA3 (6Gbps); 2x per node w/ RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
Graphics • ASPEED AST2400 Graphics (BMC with Graphic controller)
Network Devices (per node)
Onboard NIC • Intel® i350 GbE controller
• Quad RJ-45 connectors (Dual RJ-45 per node)
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/O Acceleration Technology (I/O AT)
Input / Output (per node)
Serial ATA • 4x SATA3 (6Gbps) ports
LAN • 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Shared IPMI LAN port
KVM • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features • DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Front Window (per node)
Switch • Power Button
• Node Switch
Form Factor • Power Button
Model • Node Switch
Dimension & Weight
Height • 5.21" (132.5 mm)
Width • 17.5" (444.5 mm)
Depth • 31.15" (791.2 mm)
Gross Weight • 125 lbs (56.70 kg)
Available Colors • Black
Drive Bays (per node)
Internal • 1x 2.5" SATA3 HDDs per node; up to 24x 2.5" HDDs total OR 2x 2.5" Slim SSDs per node; up to 48x 2.5" SSDs total
• Enterprise SATA HDD and SSD only recommended
System Cooling
Fans • 4x 9cm Heavy duty fans with optimal cooling zone
Power Supply
  • 2000W redundant digital power supplies w/ PMBus
AC Input • 100-120Vac: +12V/91.7A; +5Vsb/4A
• 120-140Vac: +12V/116.7A; +5Vsb/4A
• 200-220Vac: +12V/150A; +5Vsb/4A
• 220-230Vac: +12V/165A; +5Vsb/4A
• 230-240Vac: +12V/166.7A; +5Vsb/4A
Total Output Power • 1100W/1400W/1800W/1980W/2000W
Certification • Platinum Level
PC Health Monitoring
CPU • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN • Cooling zone
Temperature • Monitoring for CPU and chassis environment
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • RoHS Compliant Environmental Spec. ##Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
