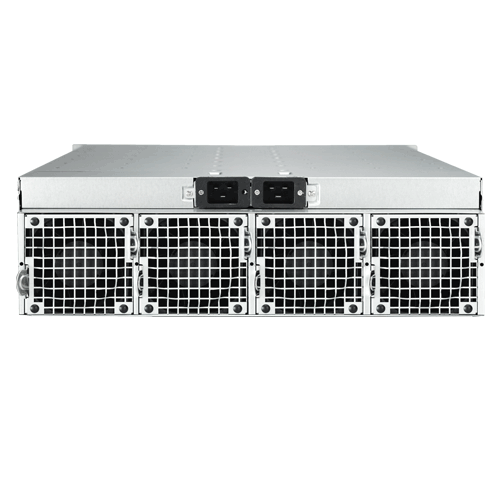

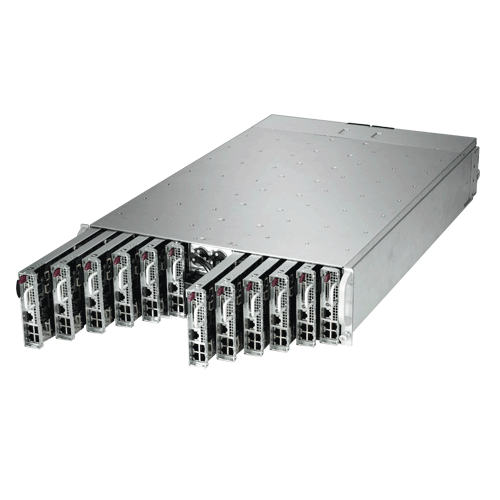

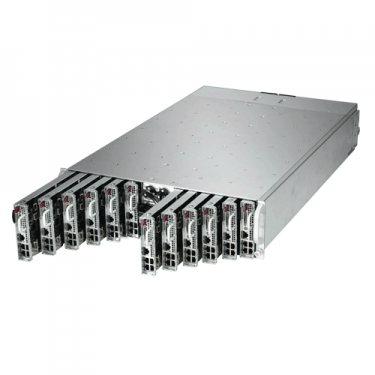

Supermicro SuperServer SYS-5038MD-H24TRF (Complete System Only)
Product SKU |
|
|---|---|
| SYS-5038MD-H24TRF | • SYS-5038MD-H24TRF (Black) |
Motherboard |
|
|---|---|
| Super X10SDE-DF | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor D-1531 • Socket FCBGA 1667 • CPU TDP support 45W, 2.2-2.6GHz, 12MB |
| Cache | • 9M Cache, 2.20 GHz |
System Memory |
|
|---|---|
| Memory Capacity | • 4x DDR4 DIMM sockets • Up to 128GB DDR4 VLP ECC RDIMM • Up to 64GB DDR4 VLP ECC/non-ECC UDIMM |
| Memory Type | • 2133/2400MHz VLP ECC DDR4 RDIMM and VLP ECC/Non-ECC UDIMM |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | •1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices (per node) |
|
|---|---|
| Chipset | • System on Chip (SoC) |
| SATA | • SATA3 (6Gbps) via SoC |
| Network Controllers |
• SATA3 (6Gbps) via SoC
Network Controllers ##Dual LAN via Intel® i350 Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2400 BMC |
| Headers | • 1 Type A USB 3.0 |
| Graphics | • ASPEED AST2400 Graphics (BMC with Graphic controller) |
Input/Output (per node) |
|
|---|---|
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 LAN shared for IPMI Remote Management |
| USB | • 2 USB 2.0 via KVM |
| KVM | • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) ports |
System Bios |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • APM 1.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • RTC (Real Time Clock) Wakeup |
Rear Windows (each node) |
|
|---|---|
| Switch | • Power / UID |
Chassis |
|
|---|---|
| Form Factor | • 3U |
| Model | • CSE-939HX-R1K63B |
Dimension & Weight |
|
|---|---|
| Width | • 17.26" (438 mm) |
| Height | • 5.21" (132 mm) |
| Depth | • 29.5" (749 mm) |
| Gross Weight | • 90 lbs (40.82 kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Button | • Power On/Off button |
| LEDs | • Power LED • Node status LED |
Drive Bays (per node) |
|
|---|---|
| Internal | • 1x 2.5" internal SATA3 (6Gbps) HDDs per node or 2x 2.5" Slim SSD with Optional kit • Enterprise SATA HDD only recommended |
System Cooling |
|
|---|---|
| Fans | • 4x 9cm Heavy duty fans with optimal cooling zone |
Power Supply |
|
|---|---|
| • 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | • 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output | • 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/135A; +5Vsb/4A |
| Certification | • Platinum Level |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
Operating Environment |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
