Supermicro Server Tower SuperServer SYS-5038AD-I

Call for price.

SKU:SYS-5038AD-I

Quick Overview:

Key Features:
• Single socket R3 (LGA 2011) Intel® Core™ i7
• Intel® X99 Chipset
• Up to 128GB of memory; 8x DIMM slots
• 4 PCI-E 3.0 x16, 2 PCI-E 2.0 x1 (in x4)
• Dual GbE LAN with Intel® I210-AT
• 2x 12cm front cooling fans, 1x 12cm rear exhaust fan
• 750W Multi-output Power Supply

Description

Details

Supermicro SuperServer SYS-5038AD-I

Product SKU
SuperWorkstation	• SYS-5038AD-I (Black)

Motherboard
	• Super C7X99-OCE

Processor/Cache
CPU	• Intel® Core™ i7 Processor Extreme Edition and X-Series, Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family (up to 160W TDP **) • Single Socket R3 (LGA 2011)
	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Supports up to 128GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 8 DIMM slots
Memory Type	• Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs • Support overclocking up to 3300MHz*
DIMM Sizes	• 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.2V

On-Board Devices
Chipset	• Intel® X99 Chipset
SATA	• SATA3 (6Gbps) via Intel X99 controller • 10x SATA3 ports: 6x iSATA (RAID 0, 1, 5, 10) and 4x sSATA
Network Controllers	• Intel® i210-AT Dual Port Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC1150 High Definition Audio

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 8x USB 3.0 ports (6 rear + 2 via header) • 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only)
Audio	• 7.1 HD Jacks
Keyboard/Mouse	• 1x PS/2 Keyboard/Mouse port
Serial Port/Header	• 1x header

Expansion Slots
PCI-Express	• 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8) • 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when Intel Core i7-5820K is installed

Expansion Slots

PCI-Express

• 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8)
• 2x PCI-E 2.0 x1 (in x4) slots

PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when Intel Core i7-5820K is installed

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• Tower
Model	• CSE-GS5A-753R

Dimension and Weight
Height	• 18.1" (460mm)
Width	• 7.9" (201mm)
Depth	• 19.4" (493mm)
Gross Weight	• 28.22 lbs (12.8 kg)
Available Colors	• Black

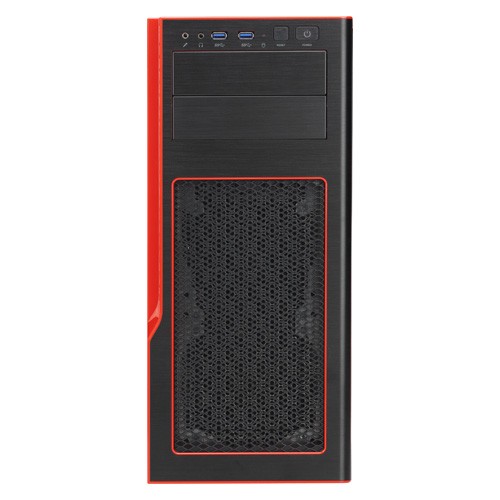

Front Panel
Buttons	• Power On/Off Button • Reset Button
LEDs	• Power LED • Hard drive activity LED
Ports	• 2x USB 3.0 ports • 1x Earphone, 1x Microphone port

Drive Bays
Internal HDD	• 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives
Peripheral	• 2x 5.25" Peripheral Drive Bays

System Cooling
Fans	• 1x 12cm rear exhaust fan • 2x 12cm front cooling fan

Power Supply
	750W Multi-output Power Supply for Desktop, semi-modular cable output
AC Input	• 100-240Vac, 50-60Hz
+5V	• Max: 20A & Min: 0A
+12V	• Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V	• Max: 20A & Min: 0A
+5V SB	• Max: 2.5A & Min: 0A
-12V	• Max: 0.3A
Certificaiton	• Gold Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
