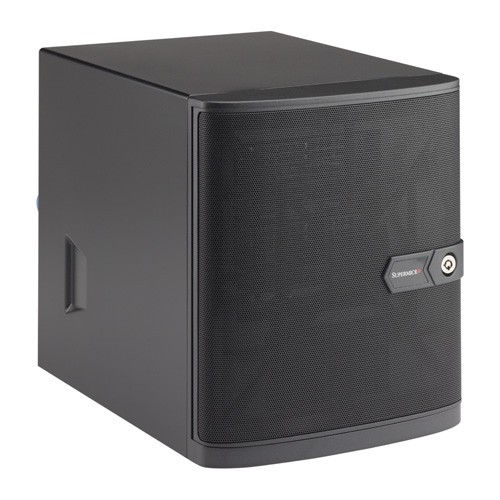

Supermicro Mini-Tower SuperServer SYS-5028A-TN4 - Angle

More Views

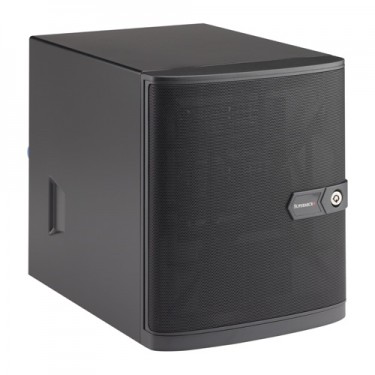

  • Supermicro Mini-Tower SuperServer SYS-5028A-TN4 - Angle

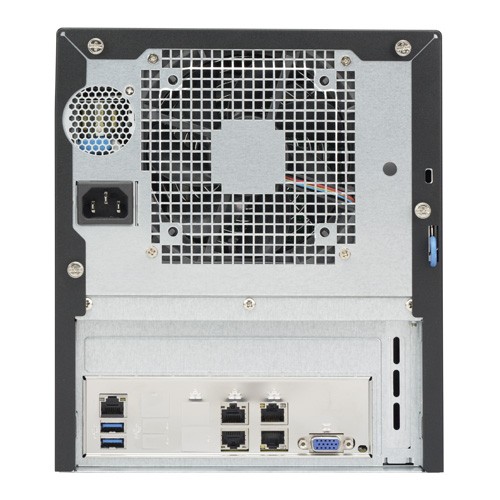

  • Supermicro Mini-Tower SuperServer SYS-5028A-TN4 - Rear

Supermicro Mini-Tower SuperServer SYS-5028A-TN4

Call for price.
SKU:SYS-5028A-TN4

Quick Overview:

Key Features:
• Intel® Atom processor
• 4x 3.5" Hot-swap SATA Trays; 2x 2.5" internal HDD bays
• 1x PCI-E 2.0 x8 slot
• Up to 64GB memory in 4 DIMM slots
• Quad LAN with Intel® C2000 SoC
• 250W Flex ATX Multi-output Bronze Power Supply


Details

Supermicro SuperServer SYS-5028A-TN4

Product SKU
SYS-5028A-TN4 • SuperServer 5028A-TN4 (Black)
Motherboard
  • Super A1SRi-2758F
Processor/Cache
CPU • Intel® Atom™ Processor C2758
System Memory
Memory Capacity • 4x 204-pin DDR3 SO-DIMM slots
• Supports up to 64GB DDR3 ECC memory
Memory Type

• 1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs
DIMM Sizes

• 16GB, 8GB, 4GB, 2GB
Memory Voltage

• 1.5 V, 1.35 V
On-Board Devices
SATA • SoC SATA3 (6Gbps), SATA2 (3Gbps)
Network Controllers • C2000 Soc I354 Quad GbE Controllers (MACs)
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Graphics

• BMC integrated ASPEED AST2400
USB 3.0

• Renesas uPD720201
Input/Output
Serial ATA • 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports
LAN • 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 3x USB 3.0 ports (2 rear, 1 Type A)
Serial Port • 1x Fast UART 16550 Serial Port (rear)
DOM • 1x SATA DOM (Disk on Module) power connector
VGA • 1x VGA Port
Others • TPM 1.2 header
Management
Software













 • SuperDoctor® 5
• Watch Dog
• NMI
Chassis
Form Factor • Mini Tower
Model • CSE-721TQ-250B
Dimension and Weight
Height • 9.45" (240mm)
Width • 8.27" (210mm)
Depth • 11" (279mm)
Gross Weight • 15 lbs (6.8 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-E

• 1x PCI-E 2.0 x8 slot
Drive Bays
HDD

• 4x 3.5" Hot-swap SATA trays
• 2x 2.5" internal HDD bays
Power Supply
  250W Flex ATX Multi-output Bronze Power Supply
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V
 • Max:14 Amp; Min:0.5 Amp
+12V • Max:18 Amp; Min:1 Amp @100V-240V
-12V • Max: 3 Amp; Min: 0 Amp
+3.3V • Max: 12 Amp Min: 0.3Amp
5VSB • Max: 2.5 Amp Min: 0 Amp
Certification • Bronze Certified
System BIOS
BIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Relative Humidity: 10% to 85% (non-condensing)
• Non-operating Relative Humidity: 10% to 95% (non-condensing)
