  • Supermicro Mini-ITX SuperServer SYS-1019S-MP

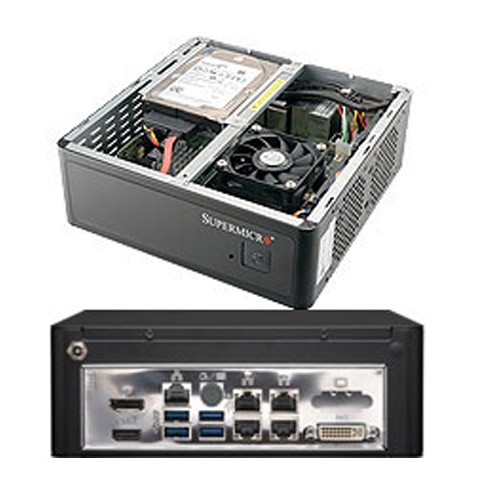

Supermicro Mini-ITX SuperServer SYS-1019S-MP

Call for price.
SKU:SYS-1019S-MP

Quick Overview:

Key Features:
• Single socket FCBGA 1440 supports Intel® Xeon® processor
• Intel® CM236 Chipset
• 1 internal 2.5" hard drive support
• Up to 32GB of memory
• 2x 6cm cooling fans
• 84W DC power adapter


Details

Supermicro SuperServer SYS1019S-MP

Product SKU
• SuperServer 1019S-MP (Black)
Motherboard
  • Super X11SSV-M4
Processor/Cache
CPU • Intel® Xeon® processor E3-1515M v5
• Single Socket FCBGA 1440, QPI up to 8.0GT/s, CPU TDP support 45W
System Memory
Memory Capacity • 2x DDR4 SO-DIMM slots
• Up to 32GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type

• 2133/1866/1600MHz ECC/Non-ECC DDR4 SODIMMs

DIMM Sizes

• 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

On-Board Devices
Chipset • Intel® CM236 Chipset
SATA • Intel® CM236 controller for 4 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10; Intel RSTe
Network Controllers • Single LAN with Intel® PHY I219LM LAN controller
• Single LAN with Intel® Ethernet Controller I210-AT
• Dual LAN with Intel® Ethernet Controller I350-AM2
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• ALC 888S HD Audio

Graphics

• Intel® Iris Pro Graphics P580

Input/Output
Serial ATA • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10; Intel RSTe
LAN • 4 RJ45 Gigabit Ethernet LAN ports
USB • 4 USB 3.0 ports (rear)
Audio • ALC 888S HD Audio
Display








• 1 Display Port 1.2, 1 HDMI 2.0, 1 DVI-I, 3 Independent Displays








Chassis
Form Factor • Mini-ITX
Model CSE-101iF
Dimension and Weight
Width • 7.68" (195mm)
Height • 2.68" (68mm)
Depth • 7.68" (195mm)
Gross Weight • 6.68 lbs (3.04 kg)
Available Colors • Black
Front Panel
Buttons

• Power button

LEDs

• Power LED (Hard drive activity LED)

I/O Ports

• 4 USB 3.0 (rear)

Expansion Slots
PCI-E

• 1 Mini-PCIe w/ mSATA support
• 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80

Drive Bays
Internal

• 1 internal 2.5" drive tray
• Enterprise SATA HDD only recommended

System Cooling
Fans

• 2x 6cm 4-pin cooling fans

Power Supply
  • 84W DC Power Adapter
System BIOS
BIOS Type

• AMI UEFI

BIOS Features

• ACPI 5.0
• DMI 2.3
• PCI 3.0
• Plug and Play (PnP)
• SMBIOS 3.0
• UEFI 2.3.1
• USB Keyboard support

Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
