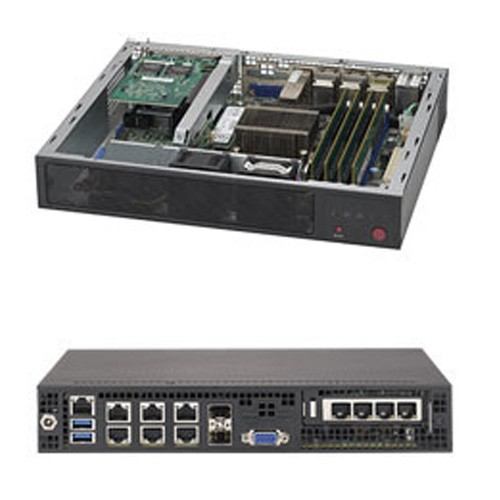

  • Supermicro Mini-1U SuperServer SYS-E300-8D - Angle

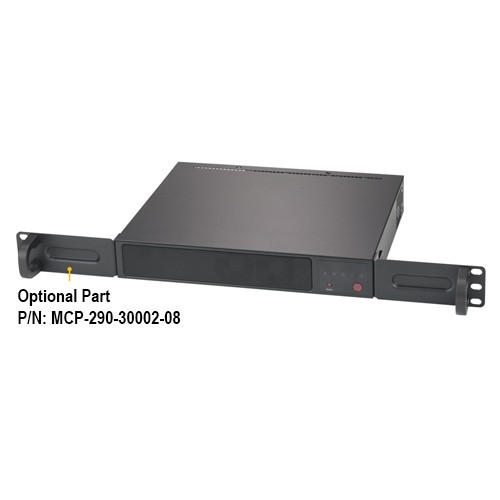

  • Supermicro Mini-1U SuperServer SYS-E300-8D - bracket

Supermicro Mini-1U SuperServer SYS-E300-8D

Call for price.
SKU:SYS-E300-8D

Quick Overview:

Key Features:
• Intel® Xeon® processor D-1518
• System on Chip
• 1x 2.5" fixed drive bay with bracket
• Up to 128GB of memory
• 2x 40mm chassis fans
• DC power adapter


Details

Supermicro SuperServer E300-8D

Product SKU
SYS-E300-8D • SuperServer E300-8D (Black)
Motherboard
  • Super X10SDV-TP8F
Processor/Cache
CPU • Intel® Xeon® processor D-1518, 2.2GHz; CPU TDP support 35W
• 2.2GHz; CPU TDP support 35W FCBGA 1667
Cores/Cache • 4 Cores, 8 Threads / 6MB
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type

• 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes

• 32GB, 16GB, 8GB, 4GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • System on Chip
SATA • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
Network Controllers • Dual 10G SFP+ from D-1500 SoC
• Quad 1GbE with Intel I350-AM4
• Dual 1GbE with Intel I210
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• Aspeed AST2400
USB 3.0

• Intel® SoC
TPM

• TPM 2.0 header
Input/Output
SATA • 4 SATA3 (6Gbps) ports
LAN • 2 10G SFP+ LAN ports
• 6 1GbE LAN ports
• 1 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Display • 1 VGA port
DOM • 2 SuperDOM (Disk on Module) power connectors
TPM




















 • TPM 2.0 header
Chassis
Form Factor • Mini-1U
Model • CSE-E300
Dimension and Weight
Width • 10" (254mm) / 15" (381mm) - pkg.
Height • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth • 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight • 7.5 lbs (3.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x8 slots
M.2

• Interface: PCI-E 3.0 x4
• Form Factor: M Key 2242/2280/22110
• Support SATA devices
Mini PCI-E

• Interface: PCI-E 2.0 x1
• Support mSATA
Drive Bays
Internal

• 1x 2.5" fixed drive bay with bracket (when AOC area is not occupied)
System Cooling
Fans

• Passive CPU heat sink and max. 3x 40mm chassis fans
Power Supply
  • DC Power Adapter
System BIOS
BIOS Type • 128Mb SPI Flash with AMI BIOS
BIOS Features • PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SUM
• SuperDoctor® 5
• Watch Dog
Power
Configuration

• ACPI Power Management
• +12V DC Power Input
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection
• M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan

• Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
