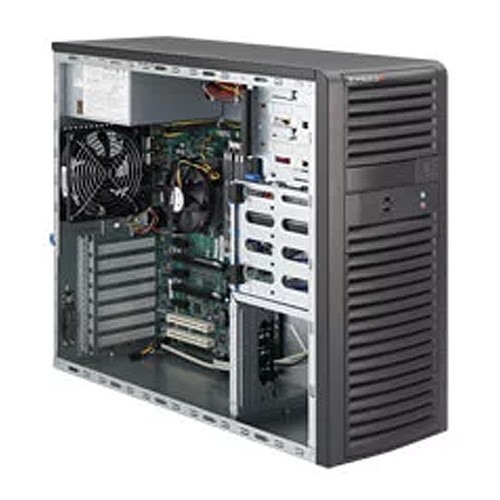

Supermicro Mid-Tower SuperWorkstation SYS-5037A-T

More Views

  • Supermicro Mid-Tower SuperWorkstation SYS-5037A-T

Supermicro Mid-Tower SuperWorkstation SYS-5037A-T

Call for price.
SKU:SYS-5037A-T

Quick Overview:

Key Features:
• Intel® 2nd Generation Core i7/i5/i3, Pentium, Celeron processors
• Up to 32GB of memory on 4 DIMM slots
• 1 (x16) PCI-E 2.0 (x8 if slot 4 is used),
   1 (x8) PCI-E 2.0 (in x16),
   3 (x1) PCI-E 2.0, and
   2 32-bit PCI slots
• 2x USB 3.0 ports, 12x USB 2.0 ports
• 4x 3.5" internal SAS/SATA HDD Bays
• 500W High-efficiency Power Supply


Details

Supermicro SuperWorkstation SYS-5037A-T

Product SKU
SuperWorkstation • SYS-5037A-T (Black)
Motherboard
  • Super C7P67
Processor/Cache
CPU • Socket H2 (LGA 1155)
• Intel® 2nd Generation Core i7/i5/i3, Pentium, Celeron processors supported
System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
Memory Type

• Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5 V
On-Board Devices
Chipset • Intel® P67 Express chipset
SATA • Intel P67, Marvell 88SE9128
Network Controllers • Realtek RTL8111E Gigabit Ethernet LAN, 2x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• REALTEK ALC889 7.1 HD Audio with optical S/PDIF
Super I/O

• Nuvoton NCT6776F
Input/Output
Serial ATA • 4 SATA 3.0 ports (6Gbps); RAID 0, 1
• 4 SATA 2.0 ports (3Gbps); RAID 0, 1, 5, 10
LAN • 2x RJ45 LAN ports
USB • 2x USB 3.0 ports
• 12x USB 2.0 ports (8 rear, 4 ports via 2 internal headers)
Audio • Line-in / Line-out / Microphone Ports; optical S/PDIF port
Serial Port/Header • 2x Fast UART 16550 serial port
Expansion Slots
PCI-Express • 1 (x16) PCI-E 2.0 (x8 if slot 4 is used)
• 1 (x8) PCI-E 2.0 (in x16)
• 3 (x1) PCI-E 2.0
PCI • 2 32-bit PCI slots
System BIOS
BIOS Type • 32Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features





















 • Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• RTC (Real time Clock) Wakeup
• 3TB HDD Support















Chassis
Form Factor • Mid-Tower
Model • CSE-732D2-500B
Dimension and Weight
Height • 7.6" (193 mm)
Width • 16.7" (424 mm)
Depth • 20.68" (525.3 mm)
Gross Weight • 33 lbs (14.97 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power status LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
Ports

• 2x Front USB 2.0 ports
• 2x Front HD/AC97 Audio ports
Drive Bays
Hard Drive

• 4x 3.5" SATA HDD Bays
• Enterprise SATA HDD only recommended
Peripheral Bay

• 2x 5.25" peripheral drive bays
• 1x 3.5" peripheral drive bay
System Cooling
Fans

• 1x 12cm (1850rpm) front cooling fan (opt.)
• 1x 12cm (1850rpm) rear exhaust fan
• Optimized Cooling Technology at 21dB Whisper-Quiet Operation
Power Supply
  500W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V
 • 20 Amp
+5V standby • 3 Amp
+12V1 • 17 Amp
+12V2 • 17 Amp
+12V3 • 17 Amp
+12V4 • 18 Amp
-12V • 0.5 Amp
+3.3V • 15 Amp
Certification • Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN

• Total of 5 fan headers supporting up to 5 fans
Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 5x fan connectors
• PECI
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
