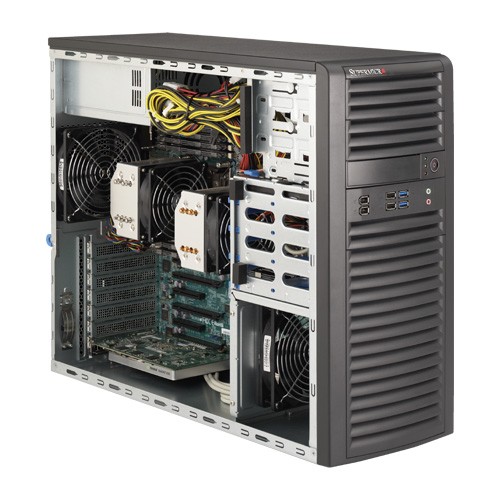

Supermicro Mid-Tower SuperWorksation SYS-7037A-i - Angle

More Views

Supermicro Mid-Tower SuperWorksation SYS-7037A-i

Description

Details

Supermicro SuperWorkstation SYS-7037A-i

Product SKU
SuperWorkstation	• SYS-7037A-i (Black)

Motherboard
	• Super X9DAi

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note	† BIOS version 3.0 or above is required
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s

System Memory
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O	• Nuvoton W83627

Input/Output
SATA	• 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 4x USB 3.0 ports (2 front + 2 rear) • 7x USB 2.0 ports (4 rear + 2 via header + 1 Type A)
Audio	• Line-in / Line-out / Microphone Ports
Keyboard/Mouse	• PS/2 Keyboard/Mouse port
Serial Port/Header	• 1x Fast UART 16550 ports
IEEE 1394a	• 2x Headers

Expansion Slots
PCI-Express	• 3 (x16) PCI-E 3.0 slots • 2 (x8) PCI-E 3.0 slots • 1 (x4) PCI-E 3.0 slot

System BIOS
BIOS Type	• 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D4F-903B

Dimension and Weight
Height	• 16.7" (424mm)
Width	• 7.6" (193mm)
Depth	• 20.68" (525.3mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x front USB 3.0 Ports • 2x front USB 2.0 Ports • 2x front 1394 Ports • 2x front HD/AC97 Audio Ports

Drive Bays
Internal	• 4x 3.5" SATA HDD Bays (90° rotatable drive cage) • Enterprise SATA HDD only recommended
Peripheral Bay	• 2x 5.25" peripheral drive bays • 1x 3.5" peripheral drive bay

System Cooling
Fans	• 1x 12cm (1850rpm) rear exhaust fan • 1x 12cm (1850rpm) front cooling fan • Optimized cooling technology for Whisper-Quiet Operation
Heatsink	• Optional 2x Active CPU Heat Sink (SNK-P0050AP4)

Power Supply
	900W AC multi output power supply
AC Voltage	• 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby	• 3 Amp
+12V1	• 25 Amp
+12V2	• 25 Amp
+12V3	• 25 Amp
+12V4	• 25 Amp
+5V	• 25 Amp
+3.3V	• 25 Amp
-12V	• 0.5 Amp
Certification	• Gold Level
Note	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Total of three fan headers supporting up to 8 fans • Three 4-pin fan headers • 3x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control (4-pin fan only)
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
