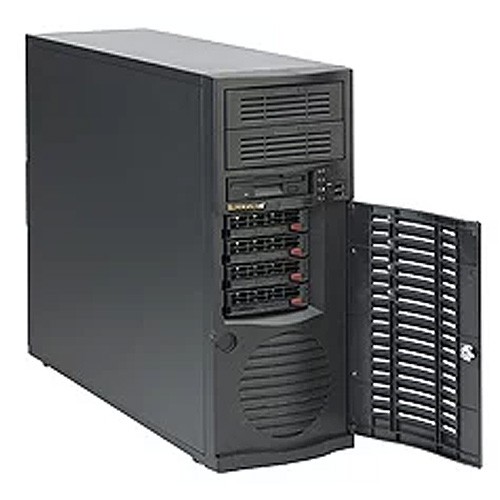

Supermicro Mid-Tower SuperServer SYS-7036A-T

More Views

Supermicro Mid-Tower SuperServer SYS-7036A-T

Description

Details

Supermicro SuperServer SYS-7036A-T

Product SKU
SuperWorkstation	• SYS-7036A-T (Black)

Motherboard
	• Super X8DAL-i

Processor/Cache
CPU	• Dual 1366-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Intel® Xeon®Processor 5600 Series (Westmere) • Intel® Xeon®Processor 5500 Series (Nehalem-EP)
QPI	• up to 6.4 GT/s

System Memory
Memory Capacity	• 6x 240-pin DIMM slots • Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported
Memory Type	• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	• 1.5 V / 1.35V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5500 (Tylersburg) chipset • ICH10R + IOH-24D
SATA	• Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support
Network Controllers	• 2x Intel® 82574L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• Realtek ALC883 7.1 HD audio
Super I/O	• Winbond 83827HF chip

Expansion Slots
PCI-Express	• 1 (x16) PCI-E 2.0 • 1 (x4) PCI-E 2.0 (in x16 slot) • 1 (x4) PCI-E
PCI	• 2x 33MHz PCI slots

Input/Output
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 1x USB on-board • 2x USB internal headers • Total 6 USB 2.0 Compliant
Audio	• Realtek ALC883 7.1 HD audio
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header (Option)

System BIOS
BIOS Type	• 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Chassis
Form Factor	• Mid-Tower
Model	• CSE-733TQ-665B

Dimension and Weight
Height	• 16.8" (427 mm)
Width	• 7" (178 mm)
Depth	• 20.9" (531 mm)
Gross Weight	• 39 lbs (17.7 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x Front side USB ports (USB 2.0 ready)

Drive Bays
Hot-swap	• 4x 3.5" SATA hot-swap drive bays
Peripheral Bay	• 2x 5.25" peripheral drive bay • 1x 3.5" bay for floppy drive

Peripheral Drives
Floppy	• Teac Floppy Drive 3.5" 1.44MB (Optional)

System Cooling
Fans	• 1x 9.2cm Front Thermal Fan • 1x 12cm Exaust Fan (Optional)

SATA Backplane
	• 4 x 3.5" SATA Backplane

Power Supply
	665W AC-DC power supply
AC Input	• 100 - 240V, 50-60Hz, 10-5 Amp
+5V	• 30 Amp
+5V standby	• 6 Amp
+12V	• 54 Amp
-12V	• 0.5 Amp
+3.3V	• 24 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator
FAN	• Total of six fan headers supporting up to 6 fans • Six 4-pin fan headers • 6x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control (4-pin fan only)
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI
Other Features	• Chassis intrusion detection • Chassis intrusion header
