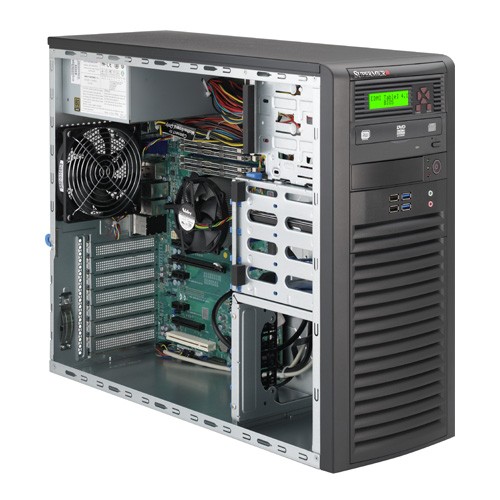

Supermicro Mid-Tower SuperServer SYS-5037A-i - Angle

More Views

Supermicro Mid-Tower SuperServer SYS-5037A-i

Description

Details

Supermicro SuperServer SYS-5037A-i

Product SKU
SuperWorkstation	• SYS-5037A-i (Black)

Motherboard
	• Super X9SRA

Processor/Cache
CPU	• Socket R (LGA 2011) • Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family†
Note	• † BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 8x 240-pin DDR3 DIMM slots • Up to 512GB DDR3 ECC LRDIMM • Up to 256GB DDR3 ECC RDIMM • Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type	• 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• 2 SATA3 (6Gbps) and 4 SATA2 (3Gbps) • RAID 0, 1, 5, 10
Network Controllers	• Intel® 82579LM and 82574L, 2x Gigabit LAN ports • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC889 7.1 High Definition Audio with S/PDIF header
TPM	• 20pin Header v1.2

Input/Output
Serial ATA	• 2 SATA 3.0 ports (6Gbps) • 4 SATA 2.0 ports (3Gbps)
SCU	• 4 SATA 2.0 ports (3Gbps) via SCU
LAN	• 2x RJ45 LAN ports
USB	• 4 USB 3.0 (5Gbps; 2 rear, 2 via headers) • 14 USB 2.0 (8 rear, 6 via headers) • Total 4 USB 3.0 and 14 USB 2.0
Audio	• Line-in / Line-out / Microphone Ports
Serial Port / Header	• 2x Fast UART 16550 serial port (one header and one rear port)

Expansion Slots
PCI-Express	• 2 (x16) PCI-E 3.0 slots • 1 (x4) PCI-E 3.0 in x8 slot • 1 (x4) PCI-E 2.0 in x8 slot • 1 PCI 32-bit slot

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D4-903B

Dimension and Weight
Height	• 16.7" (424 mm)
Width	• 7.6" (193 mm)
Depth	• 20.68" (525.3 mm)
Gross Weight	• 35.5 lbs (16.10 kg)
Available Colors	• Black

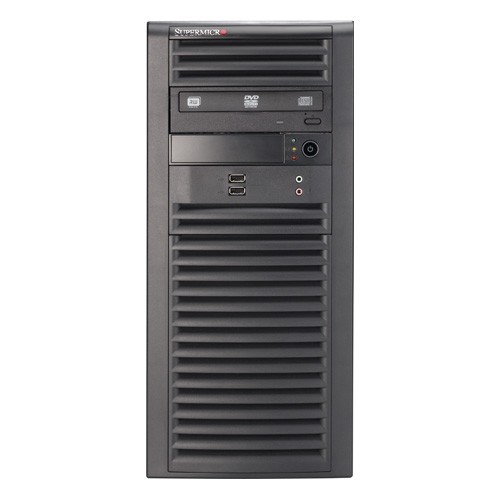

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x Front side USB ports (USB 2.0 ready)

Drive Bays
Hard Drive	• 4x 3.5" SATA3 HDD Bays • 90° rotatable tool-less hard drive cage • 4x 2.5" Internal HDD/SSD bays (optional) • Enterprise SATA HDD only recommended

System Cooling
Fans	• 1x 12cm rear exhaust fan • Optimized Cooling Technology at 21dB Whisper-Quiet Operation

Power Supply
	900W AC multi output power supply
AC Voltage	• 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby	• 3 Amp
+12V1	• 25 Amp
+12V2	• 25 Amp
+12V3	• 25 Amp
+12V4	• 25 Amp
+5V	• 25 Amp
+3.3V	• 25 Amp
-12V	• 0.5 Amp
Certification	• Gold Level
Note	• Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
Fan	• Total of 5 fan headers supporting up to 5 fans
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 5x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
