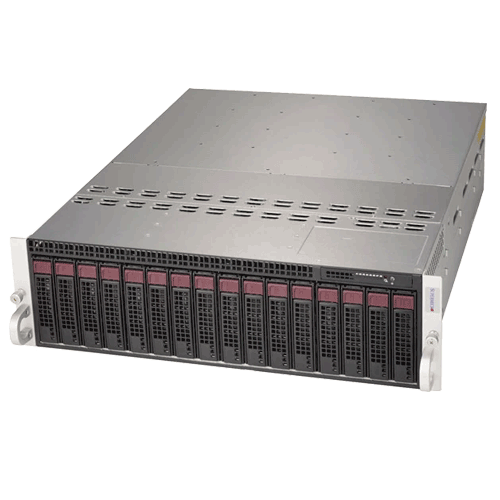

  • Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR - Angle

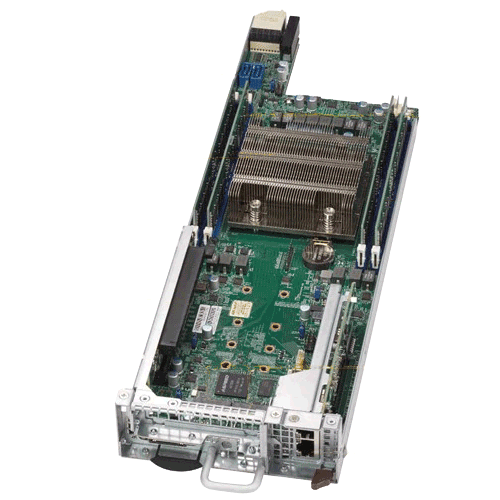

  • Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR - Node

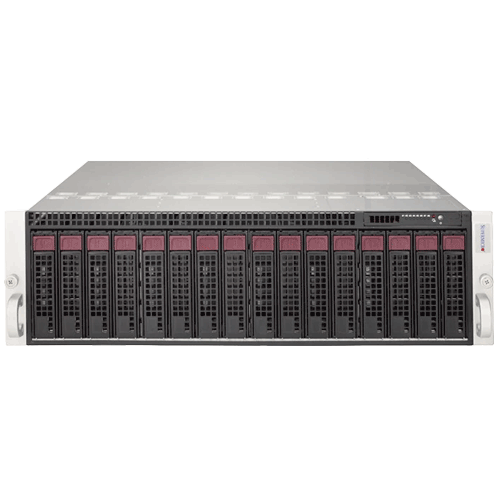

  • Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR - Front

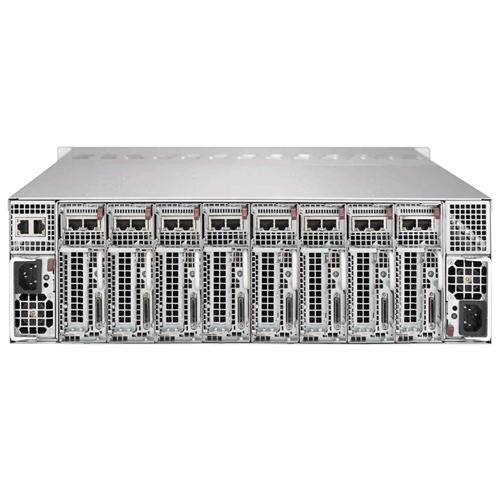

  • Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR - Rear

Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR

Call for price.
SKU:SYS-5039MD18-H8TNR

Quick Overview:

Key Features:
• Cloud Computing
• Supports Intel® Xeon® Processor
• Up to 512GB of memory
• 2x 3.5" SATA3 Internal by default;
• 4 heavy duty hot-swap 8cm fans
• 1600W Redundant power supplies Titanium Level Certified

Details

Supermicro MicroCloud 3U SuperServer SYS-5039MD18-H8TNR

Product SKU
SuperServer • SYS-5039MD18-H8TNR (Black)
Motherboard
  • Super X11SDD-18C-F
Processor/Cache (per node)
CPU • Socket FCBGA1667
• Intel® Xeon® Processor D-2191I
• CPU TDP support 86W
Cores/Cache • 18-Cores, 36 Threads
System Memory (per node)
Memory Capacity • 4x 288-pin DDR4 DIMM slots
• Up to 512 GB ECC LRDIMM
• Up to 256 GB ECC RDIMM
Memory Type

• 2400/2133MHz ECC DDR4 LRDIMM and RDIMM
DIMM Sizes

• 32GB, 16GB, 8GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
Network Devices (per node)
Micro-LP NIC • Intel® i350 GbE LAN controller
• Dual RJ-45 connectors
• MicroLP Adapter Matrix (Networking options)
On-Board Devices (per node)
Chipset • System on Chip (SoC)
SATA • SATA3 (6Gbps) via SoC
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• ASPEED AST2500 BMC
Graphics • ASPEED AST2500 Graphics (BMC with Graphic controller)
Input/Output (per node)
SATA • 2 SATA3 (6Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
KVM • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features

• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Rear Window (each node)
Switch






 • Power / UID
Chassis
Form Factor • 3U
Model • CSE-938NH-R1K68BP
Dimension and Weight
Width • 15.26" (387 mm)
Height • 5.2" (132 mm)
Depth • 23" (585 mm)
Gross Weight • 88 lbs (39.92 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED
• Node status LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (Low-profile) slot
• 1 Micro-LP PCI-E 3.0 x8 slot
M.2

• M.2 Interface: 2 PCI-E 3.0 x4
• M.2 Form Factor: 2280/22110
• M.2 Key: M-Key

Drive Bays (per node)
Internal

• 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total
• kits); up to 16 HDDs total Enterprise SATA HDD only recommended

System Cooling
Fans

• 4 Hot-swap 8cm cooling fans fan speed control
Power Supply (76mm Width)
  1600W 1U Redundant Power Supplies with PMBus
Total Output Power • 800W/1600W
Dimension
(W x H x L)
 • 76 x 40.4 x 336 mm
Input • 100-140Vac / 10-7A / 50-60Hz
• 180-240Vac / 11-8A / 50-60Hz
+12V • Max: 67A / Min: 0A (100-140Vac)
• Max: 133A / Min: 0A (180-240Vac)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN

• Cooling zone
Temperature

• Monitoring for CPU and chassis environment
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
