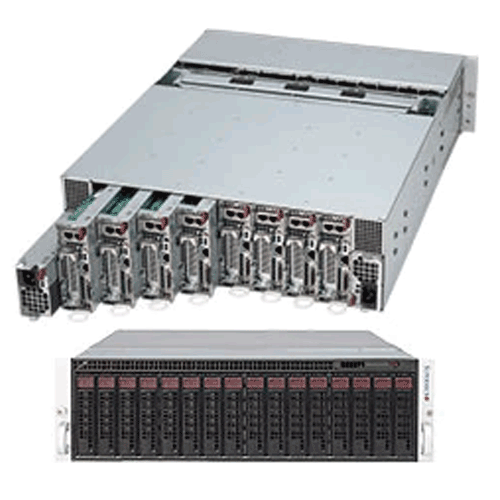

Supermicro MicroCloud 3U SuperServer SYS-5039MC-H8TRF

More Views

Supermicro MicroCloud 3U SuperServer SYS-5039MC-H8TRF

Description

Details

Supermicro MicroCloud 3U SuperServer SYS-5039MC-H8TRF

Product SKU
SuperServer	• SYS-5039MC-H8TRF

Motherboard
	• Super X11SCD-F

Processor (per node)
CPU	• Single Socket H4 (LGA 1151), CPU TDP support up to 80W • Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors

System Memory (per node)
Memory Capacity	• 4 DIMM slots • Up to 64GB Unbuffered ECC • Up to DDR4-2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB

On-Board Devices (per node)
Chipset	• Intel® C246 chipset
SATA	• SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2500 BMC
Network Controllers	• Dual LAN with Intel® i350
Graphics	• Aspeed AST2500 graphics

Input/Output (per node)
SATA	• 2 SATA3 (6Gbps) ports
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port

System BIOS
BIOS Type	• UEFI 128Mb
BIOS Features	• ACPI 1.0 / 2.0 / 3.0 / 4.0 • APM 1.2 • DMI 2.3 • Hardware BIOS Virus protection • PCI 2.3 • Plug and Play (PnP) • RTC (Real Time Clock) Wakeup • SMBIOS 2.7.1 • UEFI 2.3.1 • USB Keyboard support

Front Window (each node)
Switch	• Power / UID

Chassis
Form Factor	• 3U
Model	• CSE-938NH-R2K04BP

Dimension and Weight
Width	• 17.26" (438.4 mm)
Height	• 5.21" (132.5 mm)
Depth	• 23.2" (589 mm)
Gross Weight	• 88lbs (39.92kg)
Available Colors	• Black

Expansion Slots (per Node)
Micro-LP	• 1 PCI-E 3.0 x8 LP slot • 1 Micro-LP slot (MicroLP upgradable)
M.2	• M.2 Interface: 2 PCI-E 3.0 x4 • M.2 Form Factor: 2280, 22110 • M.2 Key: M-Key

Drive Bays (per node)
Internal	• 2x 3.5" SATA3 drives or • 2x 2.5" SATA3 w/ optional kits

System Cooling
Fans	• 4x 8cm Heavy duty fans with optimal cooling zone

Power Supply (76mm Width)
	2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100Vac-127Vac) • Max: 150A / Min: 0A (200Vac-220Vac) • Max: 165A / Min: 0A (220Vac-230Vac) • Max: 166.7A / Min: 0A (230Vac-240Vac) • Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• 27 Pairs Gold Finger Connector
Certification	• Titanium Level

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN	• Cooling zone
Temperature	• Monitoring for CPU and chassis environment

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
