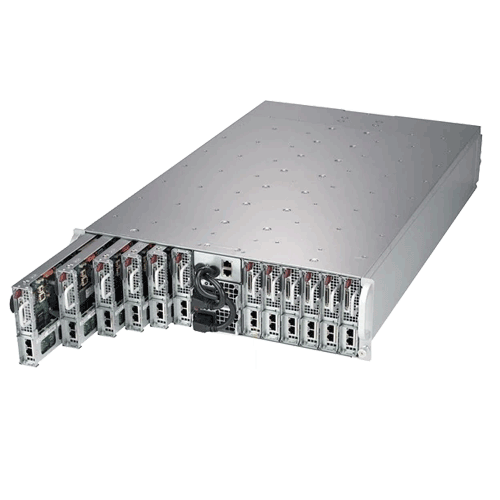

  • Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF - Angle
  • Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF - Node

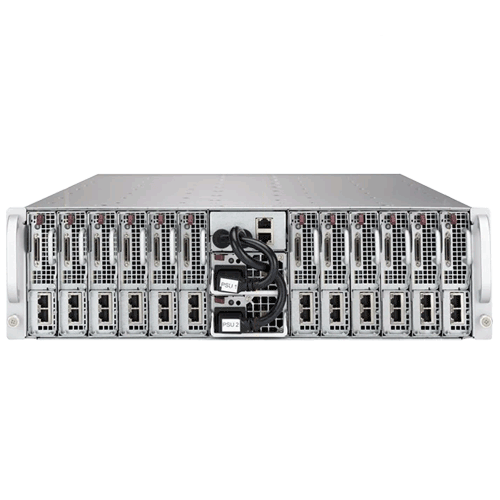

  • Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF - Front

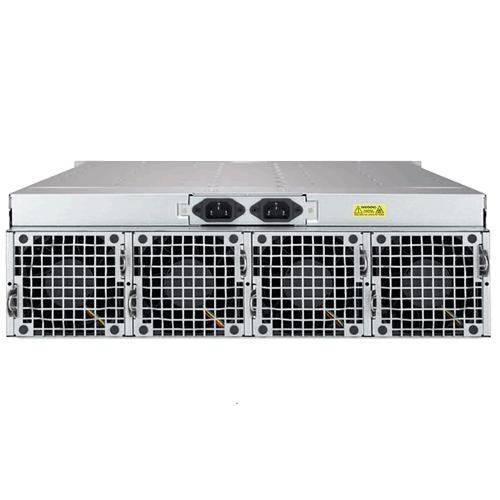

  • Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF Rear

Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF

Call for price.
SKU:SYS-5039MC-H12TRF

Quick Overview:

Key Features:
• Cloud Computing
• Support Intel® Xeon® Processor
• Up to 128GB of memory
• Internal HD Bays
• 4x 9cm Heavy duty fans with optimal cooling zone
• 2000W Redundant power supplies Titanium Level

Details

Supermicro MicroCloud 3U SuperServer SYS-5039MC-H12TRF

Product SKU
SuperServer • SYS-5039MC-H12TRF (Black)
Motherboard
  • Super X11SCE-F
Processor (per node)
CPU • Single Socket H4 (LGA 1151), CPU TDP support up to 95W
• Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
System Memory (per node)
Memory Capacity • 4 DIMM slots
• Up to 128GB Unbuffered ECC
• Up to DDR4-2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes

• 32GB, 16GB, 8GB, 4GB
On-Board Devices (per node)
Chipset • Intel® C246 chipset
SATA • SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• ASPEED AST2500 BMC

Network Controllers • Dual LAN with Intel® i350
Graphics

• Aspeed AST2500 graphics
Input/Output (per node)
SATA • 2 SATA3 (6Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
System BIOS
BIOS Type

• UEFI 128Mb
BIOS Features

• ACPI 1.0 / 2.0 / 3.0 / 4.0
• APM 1.2
• DMI 2.3
• Hardware BIOS Virus protection
• PCI 2.3
• Plug and Play (PnP)
• RTC (Real Time Clock) Wakeup
• SMBIOS 2.7.1
• UEFI 2.3.1
• USB Keyboard support
Front Window (each node)
Switch

• Power / UID
Chassis
Form Factor • 3U
Model • CSE-939HC-R2K04BP
Dimension and Weight
Width • 17.5" (444.5 mm)
Height • 5.21" (132.5 mm)
Depth • 29.5" (749.3 mm)
Gross Weight • 125lbs (56.70kg)
Available Colors • Black
Expansion Slots (per Node)
Micro-LP

• 1 Micro-LP slot (MicroLP upgradable)
M.2

• M.2 Interface: 1 PCI-E 3.0 x4 and SATA
• M.2 Form Factor: 2280, 22110
• M.2 Key: M-Key
Drive Bays (per node)
Internal

• 2x 3.5" SATA3 drives or
• 4x 2.5" SATA3 drives or
• 2x 2.5" NVMe + 2x 2.5" SATA3 drives or
• 2x 2.5" NVMe + 1x 3.5" SATA3 drive
System Cooling
Fans

• 4x 9cm Heavy duty fans with optimal cooling zone
Power Supply (76mm Width)
  2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
 • 76 x 40 x 336 mm
Input • 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100Vac-127Vac)
• Max: 150A / Min: 0A (200Vac-220Vac)
• Max: 165A / Min: 0A (220Vac-230Vac)
• Max: 166.7A / Min: 0A (230Vac-240Vac)
• Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V

FAN

• Cooling zone
Temperature • Monitoring for CPU and chassis environment
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
