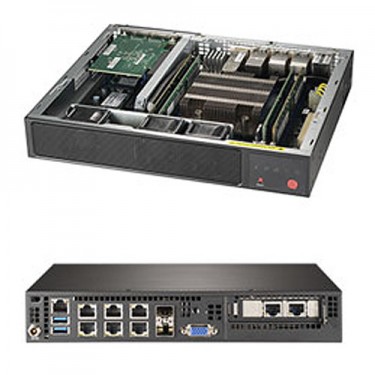

Supermicro IOT Gateway SuperServer SYS-E300-9D-4CN8TP

Call for price.
SKU:SYS-E300-9D-4CN8TP

Quick Overview:

Key Features:
• IoT Edge Computing/Gateway
• Intel® Xeon® processor D-2123IT
• System on Chip
• 1 Fixed 2.5" drive bay with bracket
• 3x 40x28mm 4-PIN PWM Fan
• Low-noise DC Power Supply


Details

Supermicro SuperServer E300-9D-4CN8TP

Product SKU
• SuperServer E300-9D-4CN8TP (Black)
Motherboard
  • Super X11SDV-4C-TP8F
Processor/Cache
CPU • Intel® Xeon® processor D-2123IT, CPU TDP support 60W
Cores/Cache • 4 Cores, 8 Threads
System Memory
Memory Capacity • Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC/non-ECC RDIMM
• 4 DIMM slots
Memory Type

• 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM
• Operating speed up to 2400MHz

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
• LRDIMM: 16GB, 32GB, 64GB, 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • System on Chip
SATA • SATA3 (6Gbps) ports via SoC controller
Network Controllers • Quad 1GbE with Intel I350-AM4
• Dual 10GBase-T with Intel X557
• Dual 10G SFP+ via SoC
IPMI

• Support for Intelligent Platform
• Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• Aspeed AST2500 BMC

Input/Output
SATA • SoC controller for 4 SATA3 (6Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports)
LAN • 2x 10G SFP+ ports
• 2x 10GBase-T LAN ports
• 4x 1GbE LAN ports
• 1 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Display • 1 VGA port
TPM













• 1 TPM 2.0 header













Chassis
Form Factor • Compact
Model CSE-E300
Dimension and Weight
Width • 10" (254mm) / 15" (381mm) - pkg.
Height • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth • 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight • 7.5 lbs (3.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x8 slot

Drive Bays
Internal

• 1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied)

System Cooling
Fans

• 3x 40x28mm 4-PIN PWM Fan

Power Supply
  • DC Power Adapter with PFC
System BIOS
BIOS Type

• 128Mb SPI Flash with AMI BIOS

BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup

Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SUM
• SuperDoctor® 5
• Watch Dog

Power
Configuration
• ACPI Power Management
• +12V DC Power Input
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection
• M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan • Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
