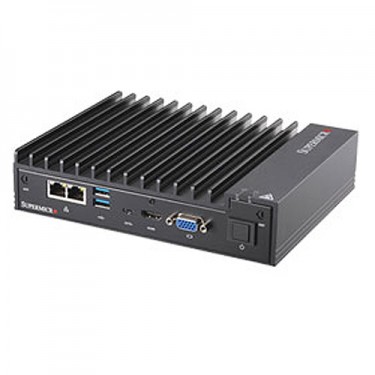

  • Supermicro IOT Gateway SuperServer SYS-E100-9APP

Supermicro IOT Gateway SuperServer SYS-E100-9APP

Call for price.
SKU:SYS-E100-9APP

Quick Overview:

Key Features:
• IoT Gateway Solution
• Intel® Pentium™ processor N4200
• Up to 8GB of memory
• 1 M.2 2280 B-Key for SATA
• Fanless design
• Lockable 12V DC 40W power adapter


Details

Supermicro SuperServer SYS-E100-9APP

Product SKU
• SuperServer E100-9APP (Black)
Motherboard
  • Super X11SAN
Processor/Cache
CPU • Intel® Pentium™ Processor N4200
• FCBGA 1296
• System-on-Chip
• CPU TDP support 6W
System Memory
Memory Capacity • 1x 204-pin DDR3L SO-DIMM socket
Memory Type

• 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB

Memory Voltage

• 1.35 V

On-Board Devices
Network Controllers • Dual GbE LAN with Intel i210-AT controller
Video • Intel HD Graphics
Input/Output
LAN • 2 RJ45 Gigabit Ethernet LAN ports
USB • 1 USB 3.1 (Type C, front)
• 2 USB 3.0 (front)
• 4 USB 2.0 (rear)
COM Port • 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Video • 1 VGA, 1 HDMI, 1 Intel HD Graphics
Audio • ALC 888S HD Audio, 1 HD Audio header (Mic-in/Line-out)
TPM • 1 TPM 2.0 Chip onboard
Others















• 1 DIO via DB9















Chassis
Form Factor • 3.5" SBC
Model CSE-E101
Dimension and Weight
Width • 7.68" (195mm) / 9.5" (241mm) - pkg.
Height • 1.73" (44mm) / 5.5" (140mm) - pkg.
Depth • 5.94" (151mm) / 8" (203mm) - pkg.
Gross Weight • 8.00 lbs.
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED and Hard drive activity LED

Expansion Slots
PCI-Express

• 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)

Drive Bays
Internal

• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)

System Cooling
Fans

• Fan-less design

Power Supply
  • Lockable 12V DC 40W power adapter
System BIOS
BIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI

Management
Software

• SuperDoctor® 5
• Watch Dog

Power
Configuration

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
• Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
