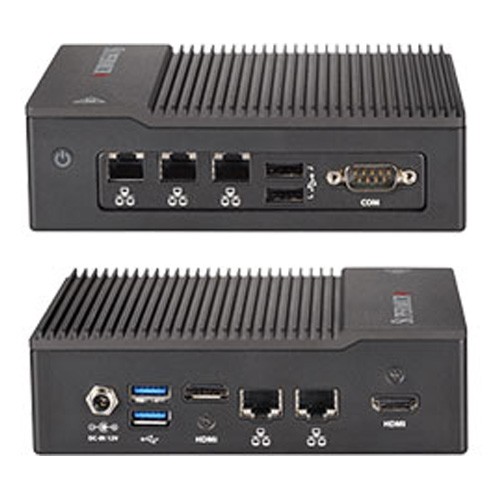

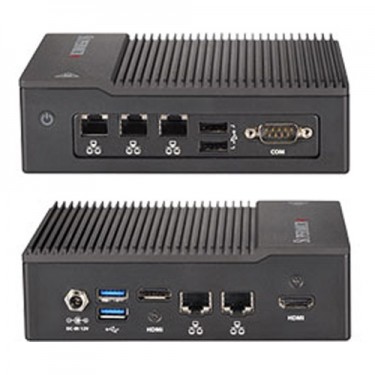

Supermicro IoT Box PC SuperServer SYS-E50-9AP-N5

More Views

Supermicro IoT Box PC SuperServer SYS-E50-9AP-N5

Description

Details

Supermicro SuperServer E50-9AP-N5

Product SKU
SYS-E50-9AP-N5	• SuperServer E50-9AP-N5 (Black)

Motherboard
	• Super A2SAP-H

Processor/Cache
CPU	• Intel® Atom® processor E3940 • Single socket FCBGA 1296 • 9.5W, 4C

System Memory
Memory Capacity	• Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
Memory Type	• DDR3L up to 1866MHz
DIMM Sizes	• 8GB, 4GB
Memory Voltage	• 1.35 V

On-Board Devices
Chipset	• System on Chip
Network Controllers	• 5 LAN with Intel® Ethernet Controller I210-IT
Audio	• ALC 888S HD Audio
Graphics	• Intel® HD Graphics • HDMI (max. resolution up to 3840 x 2160 @ 30Hz)

Input/Output
LAN	• 5 RJ45 Gigabit Ethernet LAN ports
USB	• 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (front)
Video	• 2 HDMI port
COM	• 1 COM
TPM	• 1 TPM 2.0 onboard

Chassis
Form Factor	• Proprietary
Model	• CSE-E50

Dimension and Weight
Width	• 5.82" (148mm)
Height	• 1.72" (44mm)
Depth	• 4.64" (118mm)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express	• 1 Half size Mini-PCIe
M.2	• 1 M.2 B-Key 2242 for storage (SATA SSD) • 1 M.2 E-Key 2230 for communication module

Drive Bays/Storage
Internal	• 1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242 for SATA SSD

System Cooling
Fan	• Fanless design

Power Supply
	• 40W lockable 12V DC power adapter

System BIOS
BIOS Type	• AMI UEFI

Management
Software	• SuperDoctor® 5 • Watch Dog
Power Configuration	• +12V DC Power Input • ACPI Power Management • Control of power-on for recovery from AC power loss • Force Power On by Jumper

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: -20°C to 50°C (-4°F to 122°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
