Details

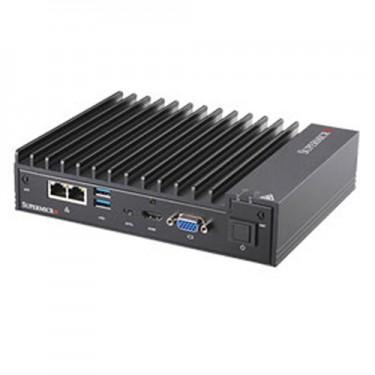

Supermicro SuperServer E100-9AP
|
Product SKU
| |
|---|---|
| SYS-E100-9AP | • SuperServer E100-9AP (Black) |
|
Motherboard
| |
|---|---|
| • Super A2SAN-E | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Atom® Processor E3940 • FCBGA 1296 • System-on-Chip • CPU TDP support 9W |
|
System Memory
| |
|---|---|
| Memory Capacity | • 1x 204-pin DDR3L SO-DIMM socket |
| Memory Type | • 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB |
| Memory Voltage | • 1.35 V |
|
On-Board Devices
| Network Controllers | • Dual GbE LAN with Intel i210-AT controller |
|---|
|
Input/Output
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports | USB | • 2 USB 3.0 (front) • 4 USB 2.0 (rear) |
COM Port | • 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
|---|---|
| Video | • 1 VGA, 1 HDMI |
| Others |
• 1 DIO via DB9 |
|
Chassis
| |
|---|---|
| Form Factor | • 3.5" SBC |
| Model | • CSE-E101 |
|
Dimension and Weight
| |
|---|---|
| Width | • 7.68" (195mm) / 9.5" (241mm) - pkg. |
| Height | • 1.73" (44mm) / 5.5" (140mm) - pkg. |
| Depth | • 5.94" (151mm) / 8" (203mm) - pkg. |
| Net Weight | • 3 lbs |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED and Hard drive activity LED |
|
Expansion Slots
| |
|---|---|
| PCI-Express |
• 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) |
|
Drive Bays
| |
|---|---|
| Internal |
• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) |
|
System Cooling
| |
|---|---|
| Fans | • Fan-less design |
|
Power Supply
| |
|---|---|
| • Lockable 12V DC 40W power adapter | |
|
System BIOS
| |
|---|---|
| BIOS Type | • 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | • Plug and Play (PnP) • DMI 2.3 • ACPI 5.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI |
|
Management
| |
|---|---|
| Software |
• SuperDoctor® 5 |
| Power Configuration | • ACPI Power Management |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
-20°C to 60°C (-4°F to 140°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms |
