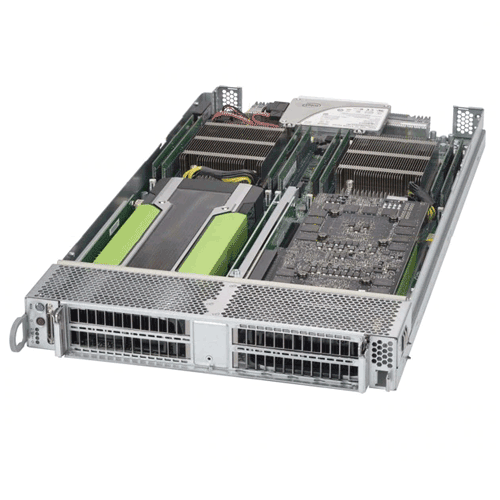

  • Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X Angle

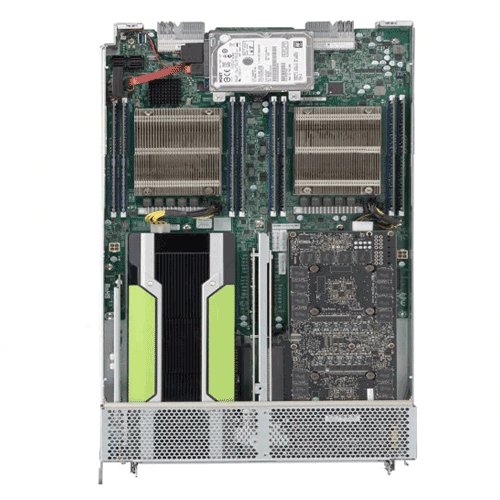

  • Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X Top
  • Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X Rear
  • Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X Front

Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X

Call for price.
SKU:SBI-7128RG-X

Quick Overview:

Key Features:
• 120 CPUs (+120 GPUs/Xeon Phi
• Intel® Xeon® processor E5-2600 v4†/ v3
• Up to 1TB of memory
• 1x SSD or 2x SATA-DOM supported
• 2x 10GbE ports onboard


Details

Supermicro GPU / Xeon Phi SuperBlade SBI-7128RG-X

Product SKU
• GPU / Xeon Phi SuperBlade
Motherboard
  • MBD-B10DRG-TP
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family
• Dual Socket R3 (LGA 2011)
Cores / Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
GPU/Xeon Phi
Support
• Two Xeon Phi or Tesla Kepler K10X / K20M / K40M / K20X / K80; GRID K1/K2
Note † BIOS version 2.0 or above is required
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB ECC RDIMM or LRDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 128GB, 64GB, 32GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
Network Controllers • 2x 10GbE ports onboard
• Intel® i350 Dual port Gigabit Ethernet
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
IPMI • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features





• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support


Dimension and Weight
Height • 11.32" (288 mm)
Width • 1.67" (42.4 mm)
Depth • 20.5" (520mm)
Gross Weight • 8.6 lbs (3.9 kg)
Available Colors • Silver
Front Panel
Buttons

• Power On/Off button
• KVM button

LEDs

• Power LED
• UID / KVM LED
• Network Activity LED
• Fault LED

Connector

• SUV (Serial/USB/Video) & KVM Connector

SSD
SSD

• 1x SSD or 2x SATA-DOM supported

Input / Output
TPM

• 1x TPM 1.2 20-pin Header

KVM

• 1x Front Connector for Supermicro KVM Card

Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)*
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States /
Canada
• FCC- Emissions (US) Verification
Europe • EN55022 - Emissions
• EN55024 - Immunity
• EN61000-3-2 - Harmonics
• EN61000-3-3 - Voltage Flicker
• CE - EMC Directive 89/336/EEC
Safety Compliance
United Staves /
Canada

• UL60950-1 - CSA/CUL 60950-1

Europe • EN60950-1, CE - Low Voltage Directive 73/23/EEE
German • TUV
