Details
|
Product SKU
| |
|---|---|

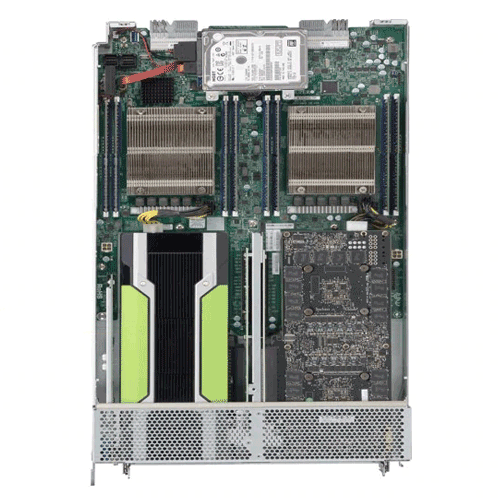

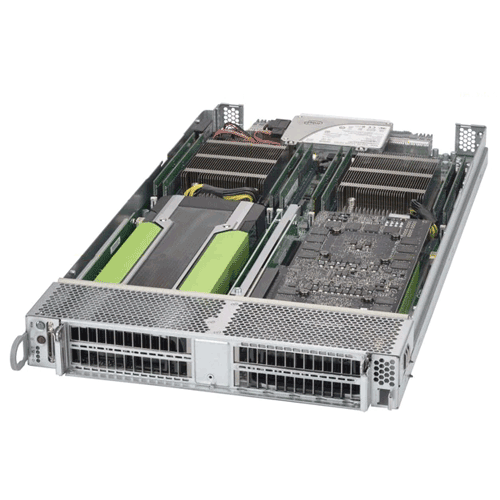

| SBI-7128RG-F | • GPU/Xeon Phi SuperBlade |
|
Motherboard
| |
|---|---|
| • MBD-B10DRG-IBF | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family • Dual Socket R3 (LGA 2011) |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| GPU/Xeon Phi Support |
• Two Xeon Phi or Tesla Kepler K10X / K20M / K40M / K20X / K80; GRID K1/K2 |
| Notes | † BIOS version 2.0 or above is required |
|
System Memory
| |
|---|---|
| Memory Capacity | • 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC RDIMM or LRDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C612 chipset |
|---|---|
| InfiniBand Support | • Single FDR (56Gbps) InfiniBand onboard |
| Network Controllers | • Intel® i350 Dual port Gigabit Ethernet • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization |
| IPMI | • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Dimension and Weight
| |
|---|---|
| Height | • 11.32" (288 mm) |
| Width | • 1.67" (42.4 mm) |
| Depth | • 20.5" (520mm) |
| Gross Weight | • 8.6 lbs (3.9 kg) |
| Available Colors | • Silver |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Connectors |
• SUV (Serial/USB/Video) & KVM Connector |
|
Storage
| |
|---|---|
| SSD |
• 1x SSD or 2x SATA-DOM supported |
|
Input / Output
| |
|---|---|
| KVM | • 1x Front Connector for Supermicro KVM Card |
| TPM |
• 1x TPM 1.2 20-pin Header |
|
Operating Environment / Compliance
| |
|---|---|
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F)* |
|
Electromagnetic Compatibility (EMC)
| |
|---|---|
| United States / Canada |
• FCC- Emissions (US) Verification |
| Europe |
• EN55022 - Emissions • EN55024 - Immunity • EN61000-3-2 - Harmonics • EN61000-3-3 - Voltage Flicker • CE - EMC Directive 89/336/EEC |
|
Safety Compliance
| |
|---|---|
| United States / Canada |
• UL60950-1 - CSA/CUL 60950-1 |
| Europe | • EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| Germany | • TUV |
