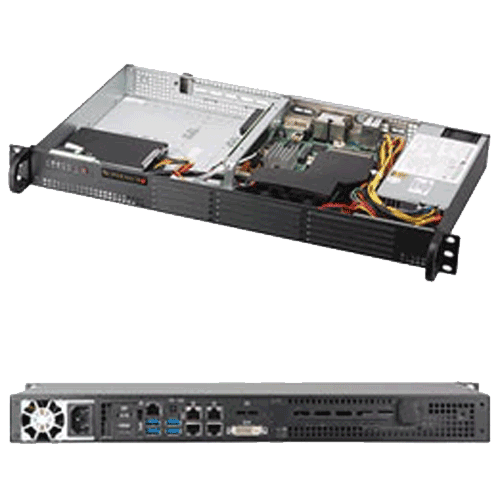

Supermicro Embedded 1U Rackmount SuperServer SYS-5019S-TN4

More Views

Supermicro Embedded 1U Rackmount SuperServer SYS-5019S-TN4

Description

Details

Supermicro Embedded 1U Rackmount SuperServer SYS-5019S-TN4

Product SKU
SYS-5019S-TN4	• SuperServer 5019S-TN4 (Black)

Motherboard
	• Super X11SSV-M4F

Processor/Cache
CPU	• Single Socket FCBGA 1440 supports: • Intel® Xeon® processor E3-1585 v5, 4-Core, 8 Threads, 65W

System Memory
Memory Capacity	• 2x DDR4 SO-DIMM slots • Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type	• 2133/1866/1600MHz ECC DDR4 SODIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V

On-Board Devices
Chipset	• Intel® C236 chipset
SATA	• SATA3 (6Gbps) via C236 controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Single GbE LAN with Intel® I219LM controller • Single GbE LAN with Intel® I210-AT; IPMI shared LAN with I210-AT • Dual GbE LAN with Intel® I350-AM2 • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	• ASPEED AST2400 BMC

Input/Output
SATA	• 4 SATA3 (6Gbps) ports
LAN	• 4 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Shared IPMI LAN port
USB	• 4 USB 3.0 ports (rear)
Video	• 1 VGA port (DVI-A)
Serial Port/Header	• 1 COM port in RJ45 socket
TPM	• 1 TPM Header

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
FAN	• Total of 3 fan headers supporting up to 3 fans • 3 fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• System Information LED • Suspend static indicator LED • UID/Remote UID
Other Features	• Chassis intrusion detection • Chassis intrusion header • Chipkill support • RoHS, Halogen Free

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-504-203B

Dimension and Weight
Width	• 17.2" (432mm)
Height	• 1.7" (43mm)
Depth	• 9.8" (249mm)
Gross Weight	• 12 lbs (5.44 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 4 Network activity LEDs • System Information LED

Expansion Slots
PCI-Express	• 1 PCI-E 3.0 x16 slot • 1 Mini PCI-E with mSATA support • M.2 Interface: PCIe 3.0 x4 and SATA M.2 Form Factor: 2242, 2280

Drive Bays
Internal	• 1x 3.5" or 4x 2.5" drive bays

System Cooling
Fans	• 3x 40x28mm 4-pin PWM Cooling Fans

Power Supply
	200W Low Noise AC-DC power supply with PFC
AC Voltage	• 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	• 8.0 Amp (max.)
+5V standby	• 2.0 Amp (max.)
+12V	• 16 Amp (max.)
-12V	• 0.5 Amp (max.)
+3.3V	• 8.0 Amp (max.)
Certification	• Gold Certified

System BIOS
BIOS Type	• 8MB SPI Flash EEPROM with AMI BIOS
BIOS Features	• DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
