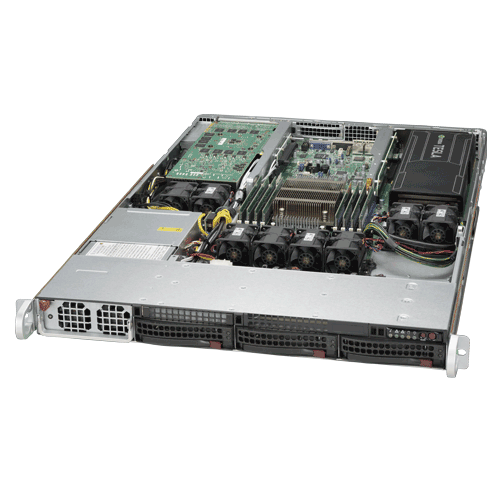

Supermicro 1U Rackmount Server Sys-5018GR-T - Angle

More Views

Supermicro 5018GR-T 1U Rackmount Server Barebone

Call for price.

SKU:SYS-5018GR-T

Quick Overview:

Key Features:
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® i350 Dual-Port GbE Controller
• 3x 3.5" Hot-swap drive bays
• 1400W High-efficiency Power Supply Platinum Level (94%+) Digital Switching Control & PMBus 1.2
• 8x Counter rotating fans w/ optimal fan speed control

Description

Details

SuperServer SYS-1018GR-T

Supermicro SYS-5018GR-T 1U Rackmount Barebone with 1400W High-efficiency Power Supply, Intel® C612 Chipset support 3x 3.5" Hot-swap drive bays using Supermicro X10SRG-F
Server Motherboard and CSE-818GTS-1K43BP 1U Rackmount Chassis.

Product SKU
SYS-5018GR-T	• SuperServer 5018GR-T (Black)

Motherboard
	Super X10SRG-F

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) • Single Socket R3 (LGA 2011)
Core/Cache	• Up to 22 Cores† / Up to 55MB† Cache
Note	• † BIOS version 2.0 or above is required
	** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 512GB ECC RDIMM
Memory Type	• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	• 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) via C612 controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 6x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear)
Video	• 1x VGA Connector
Serial Port	• 1x Serial header
DOM	• 2x DOM (Disk on Module) power connectors

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-118GTS-1K43BP

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 28.2" (716mm)
Gross Weight	• 35.5 lbs (16.10 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) • 1x PCI-E 3.0 x8 slot for I.B. card • UIO AOC Compatibility Matrix

Drive Bays
Hot Swap	• 3x 3.5" Hot-swap drive bays

System Cooling
Fans	• 8x counter-rotating fans with optimal fan speed control

Power Supply
	1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	• 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby	• 6 Amp
+12V	• 100 Amp/115 Vac • 117 Amp/230 Vac
With Power Distributor	• +5V: 14 Amp
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 5-Phase-switching voltage regulator
FAN	• Total of eight 4-pin PWM fans • 8x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
