Details

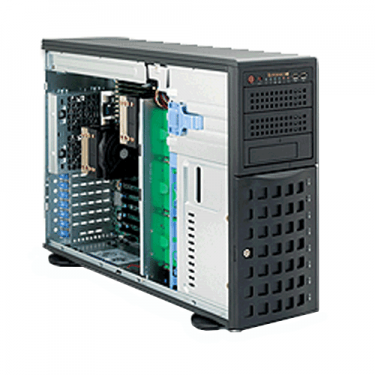

Super X8DAH+ motherboard and CSE-745TQ-R1400B Chassis.
Product SKU |
|
---|---|
SYS-7046A-HR+ | • SuperServer 7046A-HR+ (Black) |
Motherboard |
|
---|---|
Super X8DAH+ |
Processor/Cache |
|
---|---|
CPU | • Dual 1366-pin LGA Sockets |
QPI | • up to 6.4 GT/s |
System Memory |
|
---|---|
Memory Capacity |
• 18x 240-pin DIMM slots • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
Memory Type | • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
Memory Voltage | • 1.5 V / 1.35V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
Note | • This board does not support LRDIMM memory. |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5520 (Tylersburg) chipset • ICH10R +2x IOH-36D |
SATA | • Intel ICH10R SATA 3.0Gbps Controller |
Network Controllers | • Intel® 82576 Dual-Port Gigabit Ethernet Controller |
Audio | • Realtek ALC883 7.1 HD audio |
Super I/O | • Winbond 83827HF chip |
Expansion Slots |
|
---|---|
PCI-Express | • 2 (x16) PCI-E 2.0 slots • 4 (x8) PCI-E 2.0 slots (1 in x16 slot) • 1 (x4) PCI-E slot |
Input/Output |
|
---|---|
Serial ATA | • 6 Serial ATA ports • 6 SATA hard drives supported |
IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB |
LAN | • 2 RJ45 LAN ports |
USB | • 6 USB rear ports • 2 USB on-board • 2 USB internal headers (4 ports) • Total 12 USB 2.0 Compliant |
Audio | • Realtek ALC883 7.1 HD audio |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header (Option) |
IEEE 1394a | • 2 IEEE 1394a ports (1x header)
|
Chassis |
|
---|---|
Form Factor |
• 4U Rackmountable • Optional Rackmount Kit (CSE-PT26) |
Model | • CSE-745TQ-R1400B |
Dimension and Weight |
|
---|---|
Height | • 17.2" (437mm) |
Width | • 7.0" (178mm) |
Depth | • 25.5" (648mm) |
Weight | • 63 lbs (28.6kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button • System Reset button |
LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power Fail LED |
Ports | • 2x USB Ports |
Drive Bays |
|
---|---|
Hot-swap | • 8x Hot-swap Drive Bays • Supports up to 6x SATA Hard Drives |
Peripheral Bay(s) | • 3x 5.25" Peripheral Drive Bay |
SAS / SATA Backplane |
|
---|---|
• SAS / SATA Backplane w/ Enclosure Management |
System Cooling |
|
---|---|
Fans | • 3x 5000 RPM Hot-Swappable Cooling Fans • 2x 5000 RPM Hot-Swappable Rear Exhaust Fan |
Power Supply |
|
---|---|
1400W high-efficiency (1+1) redundant power supply with PMBus | |
AC Input | • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz • 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz |
DC Output | • 1100W: +12V/92A; +5Vsb/4A • 1400W: +12V/116A; +5Vsb/4A |
With Distributor | • +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
Certification | • Gold Certified |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator |
FAN | • Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control (4-pin fan only) |
Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI |
Other Feature | • Chassis intrusion detection |
System Bios |
|
---|---|
Bios Type | • 32Mb SPI Flash EEPROM with AMI® BIOS |
Bios Features | • Plug and Play (PnP) |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F) |
