  • Supermicro 4U Rackmountable Tower SuperWorkstation SYS-7047A-T

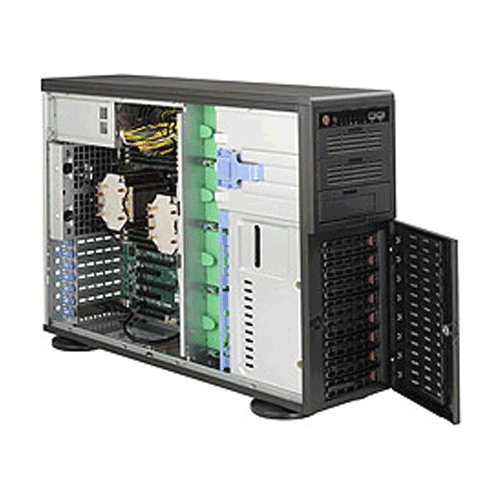

Supermicro 4U Rackmountable Tower SuperWorkstation SYS-7047A-T

Call for price.
SKU:SYS-7047A-T

Quick Overview:

Key Features:
• Whisper Quiet Workstation (27dB)
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 2x SATA3 and 8x SATA2 ports
• 8x 3.5" Hot-swap SATA HDD Bays
• 1200W High Efficiency Power Supply Platinum Level (94%)


Details

Supermicro SuperWorkstation SYS-7047A-T

Product SKU
• SYS-7047A-T (Black)
Motherboard
  • Super X9DAi
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note † BIOS version 3.0 or above is required
System Memory
Memory Capacity

• 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® C602 Chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
Network Controllers • Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• RealTek ALC889 7.1 High Definition Audio with S/PDIF header

Super I/O

• Nuvoton W83627

Input/Output
SATA • 2x SATA 3.0 ports (6Gbps)
• 8x SATA 2.0 ports (3Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
USB • 4x USB 3.0 ports (2 front + 2 rear)
• 7x USB 2.0 ports (4 rear + 2 via header + 1 Type A)
Audio • Line-in / Line-out / Microphone Ports
Keyboard/Mouse • PS/2 Keyboard/Mouse port
Serial Port/Header • 1x Fast UART 16550 ports
IEEE 1394a • 2x Headers
TPM • 20pin Header v1.2
System BIOS
BIOS Type • 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features











• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI





Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit
Model CSE-743TQ-1200B-SQ
Dimension and Weight
Height • 17.8" (452mm)
Width • 7" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 71 lbs (32.2 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports

• 2x front USB 3.0 Ports

Drive Bays
Hot-swap

• 8x 3.5" Hot-swap SATA Drive Trays

Peripheral Bay(s)
[90o Rotatable]
• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay for Floppy Drive
SAS / SATA Backplane


• SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling
Fans

• 2x 80mm PWM Super Quiet Fans
• 1x 92mm PWM Super Quiet Rear Fan

Power Supply
  1200W high-efficiency power supply w/ PMBus
AC Input • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
• 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
• +3.3V / +5V / +12V / -12V / +5VSB
• 20A / 20A / 83A / 0.3A / 3A
• 20A / 20A / 99A / 0.3A / 3A
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W
Certification • Platinum Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator

FAN

• Total of three fan headers supporting up to 8 fans
• Three 4-pin fan headers
• 3x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control (4-pin fan only)

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
