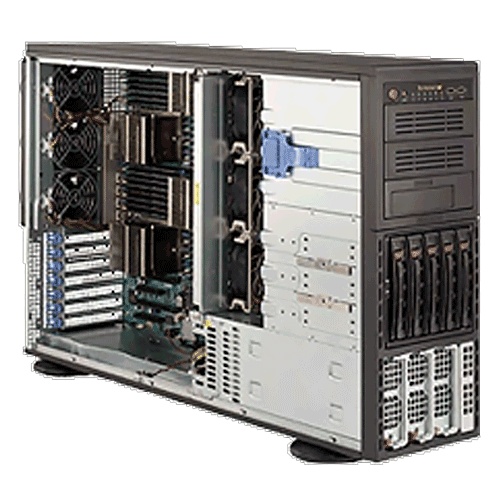

  • Supermicro 4U Rackmountable Tower A+ AMD Opteron Server 4042G-72RF4

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4042G-72RF4

Call for price.
SKU:AS-4042G-72RF4

Quick Overview:

Key Features:
• 4x AMD Opteron™ 6000 series processor
• Up to 1TB of memory
• 5x Hot-swap SAS/SATA Drive Bays
• 2x PCI-E 2.0 x16 slot
• LSI 2208 8-port 6 Gbps SAS2 controller
• 1400W High-efficiency Redundant Digital
   Power Supplies

Details

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server 4042G-72RF4

Product SKU
• A+ Server 4042G-72RF4 (Black)
Motherboard
  • Super H8QG7-LN4F
Processor/Chipset
CPU • Quad 1944-pin Socket G34
• Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
• HT3.0 Link support
Chipset • AMD SR5690/SR5670/SP5100 Chipset
Note Supports 6000 processors with Max ACP 80W (TDP 115W)
System Memory
Memory Capacity • 32 DIMM sockets
• Support up to 1TB Registered ECC or 256GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 32 DIMMs
• Quad channel memory bus
• For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

• 1.35V or 1.5V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • AMD SP5100 (RAID 0, 1, 10)
SAS • LSI 2208 8-port SAS2 controller
• HW RAID 0, 1, 5, 6, 10, 50, 60 (1GB cache)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel® I350 controller, 4-Port Gigabit Ethernet
• 10/100/1000BASE-T support
Super I/O

• Winbond® W83527 chip

VGA

• Matrox G200 16MB DDR2 graphics

Input/Output
SATA • 6x SATA2.0 (3Gb/s) Ports
SAS • SAS2 x8
LAN • 4 RJ45 LAN ports
• 1 RJ45 Dedicated LAN supports IPMI
USB • 7x USB 2.0 ports
• 2x Rear, 2x internal headers-4x ports, and 1x type A
VGA • 1x VGA port
Serial Ports •1x serial port header
IPMI • 1x dedicated IPMI LAN port; WPCM450
Others • 1 SATA DOM power connector, TPM header
Expansion Slot
PCI-Express

• 2x PCI-E 2.0 x16 slots
•2x PCI-E 2.0 x8 slots

System BIOS
BIOS Type

• 16Mb Flash EEPROM with AMI® BIOS

BIOS Features






• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• USB Keyboard Support
• SMBIOS 2.3


Chassis
Form Factor • Tower / 4U Rackmountable
Model CSE-748TQ-R1K43B
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 87 lbs (39.5 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power Fail LED

Ports • 2x USB Ports
Drive Bays
Hot-swap

• 5x 3.5" Hot-swap SAS/SATA Drive Bays and 3x 5.25?Peripheral Drive Bays
• SAS or enterprise SATA HDD only recommended

Peripheral Bay(s)

• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive

SAS / SATA Backplane


• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans

• 3x 7200 RPM Hot-Swappable Cooling Fans
• 3x 8200 RPM Hot-Swappable Rear Exhaust Fan

Power Supply
  Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage • 100-240 V, 50-60 Hz, 15 Amp max
+12V
• 100 Amp/115 Vac
• 117 Amp/230 Vac
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp
Certification • 80Plus Platinum Certified
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
• CPU 4-Phase-switching voltage reulator

FAN • Total up to 9-fan status tachometer monitoring
• Up to nine 3-pin fan headers
• Status monitor for speed control
• Support 3-pin fans with fan-speed control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• PC Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec • Operating Temperature: 10°C to 30°C (50°F to 86°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
