Details

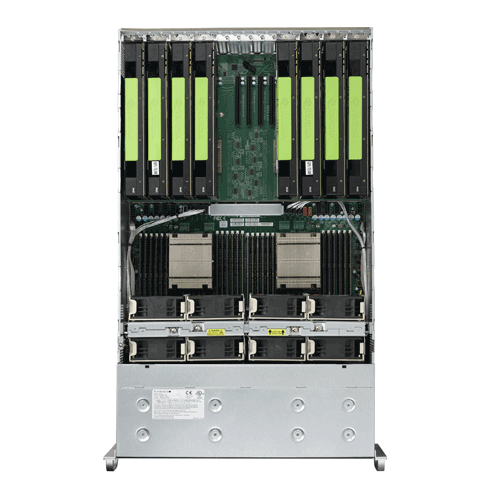

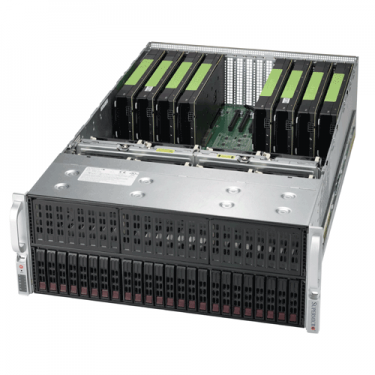

X10DRG-O+-CPU motherboard and CSE-418GTS-R4000B Chassis.
Product SKU |
|
|---|---|
| SYS-4028GR-TRT2 | • SuperServer 4028GR-TRT2 (Black) |
Motherboard |
|
|---|---|
| Super X10DRG-OT+-CPU | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Notes | • † BIOS version 2.0 or above is required |
| * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Dual 10GBase-T Ports with Intel® X540 |
| Graphics | • ASPEED AST2400 BMC |

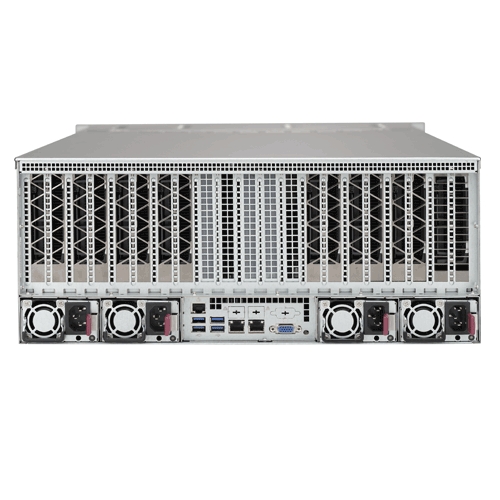

Input/Output |
|
|---|---|
| SATA | • 4 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 4 USB 3.0 ports |
| Video | • 1 VGA Connector |
| Serial Port | • 1 Serial header |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor |
• 4U Rackmountable • Rackmount Kit (MCP-290-00057-0N) |
| Model | • CSE-418GTS-R4000B |
Dimension and Weight |
|
|---|---|
| Height | • 7.0" (178mm) |
| Width | • 17.2" (437mm) |
| Depth | • 29" (737mm) |
| Weight | • 135 lbs (61.2 kg) |
| Available Color | • Black |

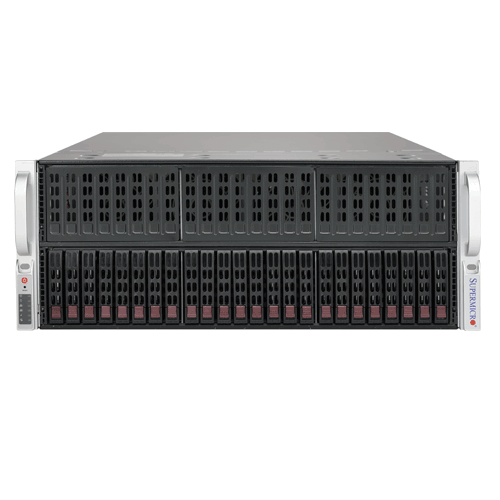

Drive Bays |
|
|---|---|
| Hot-swap | • 24x 2.5" Hard drive bays |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 8x 92mm RPM Hot-Swappable Cooling Fans |
| Shroud | • 1 Air Shroud (MCP-310-84808-0B) |
Power Supply |
|
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| Dimension
(W x H x L) |
• 73.5 x 40 x 265 mm |
| Input | • 100-120Vac / 12-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
| +12V | • Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | • 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 8x fan connectors |
| Other Feature | • Chassis intrusion detection |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F) |
