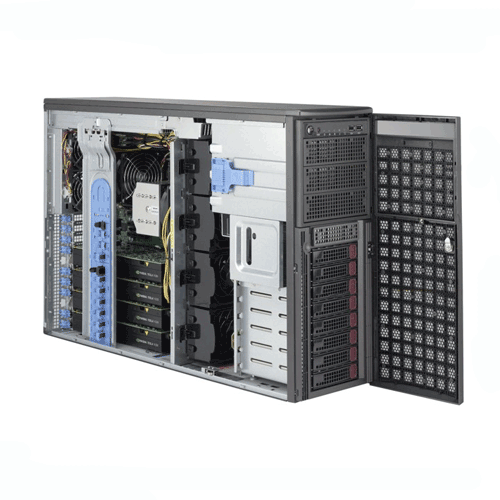

  • Supermicro 4U Rackmount SuperWorkstation SYS-7048GR-TR - Angle

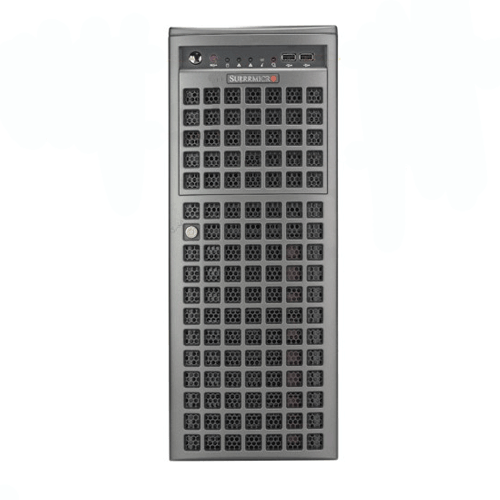

  • Supermicro 4U Rackmount SuperWorkstation SYS-7048GR-TR - Front

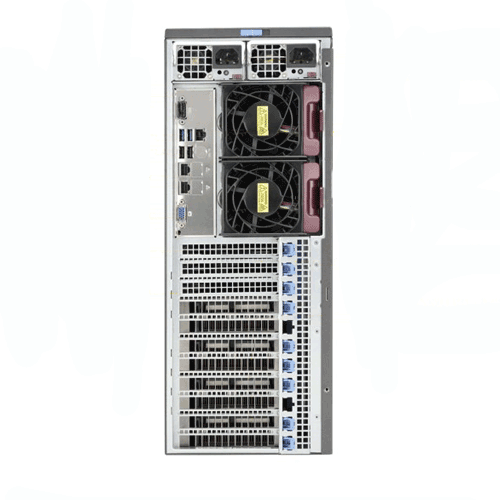

  • Supermicro 4U Rackmount SuperWorkstation SYS-7048GR-TR - Rear

Supermicro 4U Rackmount SuperWorkstation SYS-7048GR-TR

Call for price.
SKU:SYS-7048GR-TR

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM Slots
• 8 Hot-swap 3.5", 3 Fixed 5.25" and 1 Fixed 3.5" Drive Bays
• 4 Heavy Duty Fans, 2 Exhaust Fans, and 2 Active Heatsink
   with Optimal Fan Speed C
• Tower or Rackmount
• Thunderbolt Ready


Details

Supermicro SuperWorkstation SYS-7048GR-TR

Product SKU
• SuperServer 7048GR-TR (Black)
Motherboard
  • Super X10DRG-Q
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization
GPU Support • NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1 Realtek RTL8211E PHY (dedicated IPMI)

Video

• ASPEED AST2400 BMC

Input/Output
SATA • 10 SATA3 (6Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
•#1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
• 4 USB 2.0 ports (2 rear, 2 via headers)
Audio • HD Audio
Video • 1 VGA port
Serial Port/Header • 2 COM ports (1 rear, 1 Header)
Thunderbolt • Thunderbolt AOC Header
Expansion Slots
PCI-Express • 4 PCI-E 3.0 x16 (double-width)
• 2 PCI-E 3.0 x8 (1 in x16 slot) support Thunderbolt 2.0 AOC
• 1 PCI-E 2.0 x4 (in x8)
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features






















• Plug and Play (PnP)
• APM 1.2
• DMI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
















Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit
Model CSE-747BTQ-R2K04B
Dimension and Weight
Height • 18.2" (462mm)
Width • 7.0" (178mm)
Depth • 26.5" (673mm)
Gross Weight • 62 lbs (28.1 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power status LED
• Hard drive activity LED
• 2 Network activity LEDs
• System Overheat & Power Fail LED

Ports • 2 Front USB 3.0 Ports
Drive Bays
Hot-swap

• 8 Hot-swap 3.5" SAS/SATA Drive Trays

Peripheral Bay(s) • 3x 5.25" drive bays in storage module - rotates 90° for Rackmount
• 1x 3.5" fixed drive bay
SAS/SATA Backplane


• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans

• 4x 92x38mm 4-pin PWM Middle Cooling Fans
• 2 Rear exhaust fans
• 2 Optional Rear fans (required for Passive GPUs)

Heatsink

• 2 Active Heatsink with Optimal Fan Speed Control

Power Supply
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100-127 Vac)
• Max: 150A / Min: 0A (200-220 Vac)
• Max: 165A / Min: 0A (220-230 Vac)
• Max: 166.7A / Min: 0A (230-240 Vac)
• Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator

FAN

• Total of eight fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
