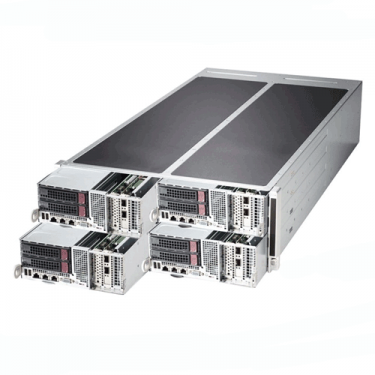

Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+ Angle

More Views

  • Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+ Angle
  • Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+ Node01
  • Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+ Node02
  • Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+ Rear

Supermicro 4U Rackmount SuperServer SYS-F628R3-FT+

Call for price.
SKU:SYS-F628R3-FT+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 2x PCI-E 3.0 x8 (Low Profile) slots
• Front I/O: 2 GbE LAN, 2 USB 3.0, and 1 VGA connector
• 2x 3.5" Hot-swap SATA3 HDDs
• 1280W Redundant Power Supplies Platinum Level (95%)


Details

Supermicro SuperServer SYS-F628R3-FT+

Product SKU
SYS-F628R3-FT+ • SuperServer F628R3-FT+ (Black)
Motherboard
  • Super X10DRFF-IG
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Notes • Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics

• ASPEED AST2400 BMC
Input/Output (per node)
SATA • 2x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports
VGA




 • 1x VGA port
Chassis
Form Factor • 4U Rackmount
Model • CSE-F424AL-R1K28BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 150 lbs (68.04 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
Expansion Slots (per node)
PCI-Express

• 2x PCI-E 3.0 x8 (Low Profile) slots
Drive Bays (per node)
Hot-swap

• 2x 3.5" Hot-swap SATA3 HDD trays
Backplane


• 1x SATA3 backplane
System Cooling
Fans

• 8x 8cm 9.5K heavy duty, hot swappable fans with air shroud and PWM fan speed control
Power Supply
  1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input • 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
 • 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certification • Platinum Certified [ Test Report ]
SYSTEM BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
Environmental Spec.BIOS Features • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
