Details
|
Product SKU
| |
|---|---|

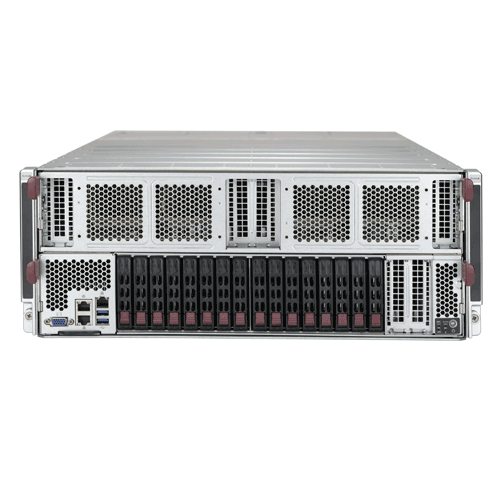

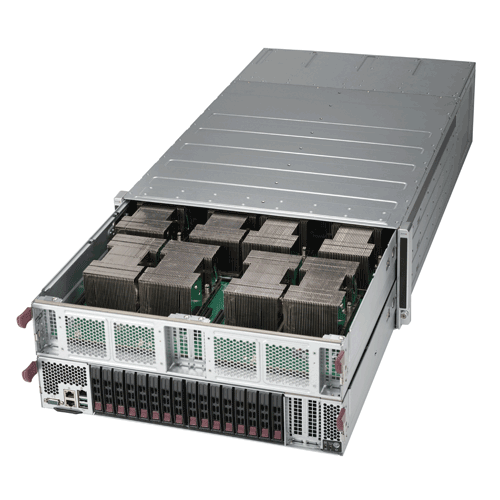

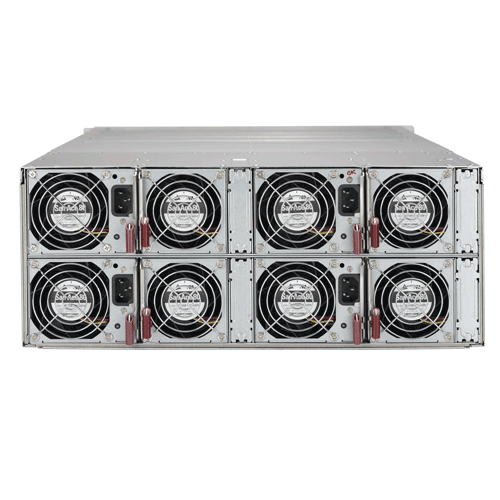

| SYS-4028GR-TXR | • SuperServer 4028GR-TXR (Black) |
|
Motherboard
| |
|---|---|
| • Super X10DGO | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| † BIOS version 2.0 or above is required | |
| Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | |
| Notes | • 8 NVIDIA® Tesla® P100 SXM2 • NVIDIA® NVLINK™ up to 80GB/s |
|
System Memory
| |
|---|---|
| Memory Capacity | • 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C612 chipset |
|---|---|
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Dual Port 1GbE with Intel i350 Ethernet Controller |
| Graphics |
• ASPEED AST2400 BMC |
|
Input/Output
| SATA | • 10 SATA3 (6Gbps) ports | LAN | • 2 RJ45 1GbE LAN ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 2 USB 3.0 ports |
|---|---|
| VIDEO | • 1 VGA Connector |
| Serial Port | • 1 Serial header |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features |
• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable • Rackmount Kit (MCP-290-31401-0N) |
| Model | • CSE-R422BG-2 |
|
Dimension and Weight
| |
|---|---|
| Height | • 7.0" (178mm) |
| Width | • 17.6" (447mm) |
| Depth | • 31.7" (805mm) |
| Gross Weight | • 135 lbs (61.2 kg) |
| Available Colors | • Black |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 16 Hot-swap 2.5" SATA/SAS drive bays |
|
Expansion Slots
| |
|---|---|
| PCI-Express |
• 4 PCI-E 3.0 x16 (low-profile) slots |
| M.2 | • M.2 Interface: PCI-E 3.0 x4 |
|
System Cooling
| |
|---|---|
| Fans |
• 8x 92mm Cooling Fans |
| Shrouds | • 1 Air Shroud (MCP-310-41808-0B) |
|
Power Supply
| |
|---|---|
| 2200W Redundant Titanium Level Power Supplies with PMBus | |
| Total Output Power | • 1200W/1800W/1980W/2090W/2200W (UL/cUL only) |
| Dimension
(W x H x L) |
• 106.5 x 82.4 x 203.5 mm |
| Input | • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) • 2090W: 230-240 Vdc / 10-9.8 A (CCC only) |
| +12V | • Max: 100A / Min: 0A (1200W) • Max: 150A / Min: 0A (1800W) • Max: 165A / Min: 0A (1980W) • Max: 174.17A / Min: 0A (2090W) • Max: 183.3A / Min: 0A (2200W) • Max: 174.17A / Min: 0A (2090W) |
| 12Vsb | • Max: 2A / Min: 0A |
| Output Type | • Gold Finger (connector on M/P) |
| Certification | • Titanium Level |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. |
| FAN | • 4-pin fan headers with tachometer status monitoring |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 8 fan connectors |
| Other Features | • Chassis intrusion detection |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
