Details

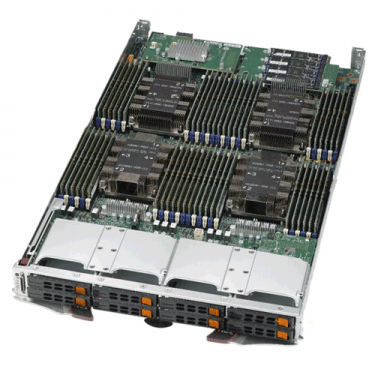

Supermicro 4 Socket Processor Blade SBI-8149P-T8N
|
Product SKU
| |
|---|---|
| SBI-8149P-T8N | • Processor Blade SBI-8149P-T8N (Black) |
|
Motherboard
| |
|---|---|
| • Super B11QPi | |
| Processor/Cache
|
|
|---|---|
| CPU | • Quad Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP up to 165W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
|
System Memory
| |
|---|---|
| Memory Capacity | • 48 DIMM slots • Up to 6TB Registered ECC LRDIMM/RDIMM |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 |
|
On-Board Devices
| Chipset | • Intel® C622 chipset |
|---|---|
| Network Controllers | • Dual 10G onboard and High speed network options via 25G/50G/100G/EDR Mezzanine card |
| IPMI | • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Graphics | • Aspeed AST2500 BMC |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Dimension and Weight
| |
|---|---|
| Height | • 13" |
| Width | • 1.75" |
| Depth | • 23.5" |
| Gross Weight | • 24.2 lbs (11.0 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Connector |
• SUV (Serial/USB/Video) & KVM Connector |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8 Hot-Plug 2.5" NVMe (7mm) / 4 SATA3/NVMe drive bays (15mm) |
| M.2 |
• 2 PCI-E x4 connector for 2 M.2 |
|
Input / Output
| |
|---|---|
| TPM | • 1 TPM Header |
| KVM |
• 1 Front Connector for SMCI KVM Card |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec.
|
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
