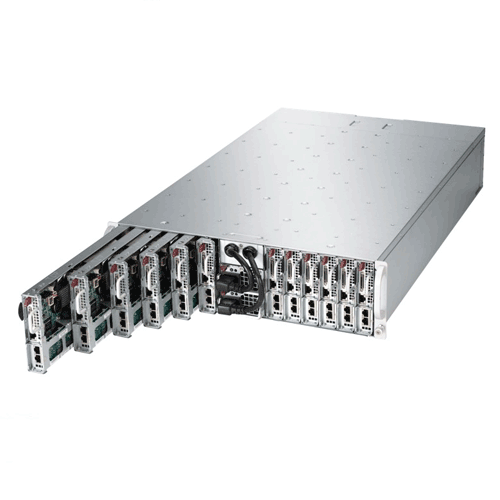

Supermicro SuperServer SYS-5038ML-H12TRF
Product SKU |
|
|---|---|
| SuperServer | • SYS-5038ML-H12TRF |
Motherboard |
|
|---|---|
| Super X10SLE-F | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors • Up to 80W • Socket H3 (LGA 1150) |
System Memory (per node) |
|
|---|---|
| Memory Capacity | • 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices (per node) |
|
|---|---|
| Chipset | • Intel® C224 PCH chipset |
| SATA | • 1x SATA DOM • 4x SATA3 (6Gbps) w/ RAID 0, 1, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2400 BMC |
| Graphics | • ASPEED AST2400 Graphics (BMC with Graphic controller) |
Network Devices (per node) |
|
|---|---|
| Micro-LP NIC | • Intel® i350 GbE controller • Dual RJ-45 connectors • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/O Acceleration Technology (I/O AT) • MicroLP Adapter Matrix (Networking options) |
Input / Output (per node) |
|
|---|---|
| SATA | • 4x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| DOM | • SATA DOM (Disk on Module) power connector support |
| KVM | • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle) |
System BIOS |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
Front Window (per node) |
|
|---|---|
| Switch | • Power / UID |
Chassis |
|
|---|---|
| Form Factor | • 3U |
| Model | • CSE-939H-R1K63B |
Dimension & Weight |
|
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.5" (444.5 mm) |
| Depth | • 29.5" (749.3 mm) |
| Gross Weight | • 125 lbs (56.70 kg) |
| Available Colors | • ##Black |
Drive Bays (per node) |
|
|---|---|
| Internal | • 2x 3.5" SATA3 HDDs per node; up to 24x 3.5" HDDs total OR 4x 2.5" SATA3 HDDs per node; up to 48x 2.5" HDDs total • Enterprise SATA HDD only recommended |
System Cooling |
|
|---|---|
| Fans | • 4x 9cm Heavy duty fans with optimal cooling zone |
Power Supply |
|
|---|---|
| • 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | • 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output | • 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/135A; +5Vsb/4A |
| Certification | • Platinum Level |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
