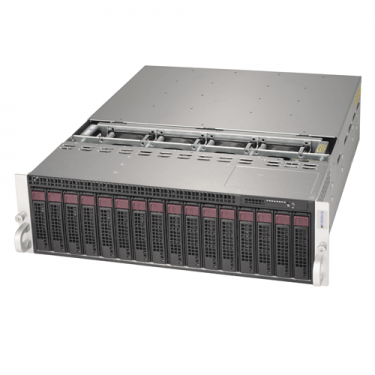

  • Supermicro 3U Rackmount Server SYS-5038MD-H8TRF - Angle
  • Supermicro 3U Rackmount Server SYS-5038MD-H8TRF - Tops
  • Supermicro 3U Rackmount Server SYS-5038MD-H8TRF - Top
  • Supermicro 3U Rackmount Server SYS-5038MD-H8TRF - Front
  • Supermicro 3U Rackmount Server SYS-5038MD-H8TRF - Rear

Supermicro 3U Rackmount Server SYS-5038MD-H8TRF

Call for price.
SKU:SYS-5038MD-H8TRF

Quick Overview:

Key Features:
• Cloud Computing
• Web Cache, CDN
• Web Hosting, VM
• Social Networking
• Single socket FCBGA 1667, 8-Core, 45W, 16 Threads; support Intel® Xeon®
   processor D-1541
• 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits
• Up to 128GB DDR4 ECC RDIMM/64GB DDR4 ECC UDIMM, 4 sockets
• 2x GbE LAN ports via Intel i350, 1x dedicated LAN for IPMI
   Remote Management
• 1x PCI-E 3.0 x8 LP, 1x Micro-LP, 4x M.2
• 2x USB 2.0, 1x VGA, 1x COM port (with KVM dongle)
• 4x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)
• 1600W Redundant power supplies Titanium Level Certified (per system)


Details

SuperServer SYS-5038MD-H8TRF 3U Rackmount

Supermicro SYS-5038MD-H8TRF 3U Rackmount SuperServer with 1600W Redundant Power Supplies,System on Chip (SoC), 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node using
Supermicro MBD-X10SDD-F Server Motherboard and CSE-938BH-R1K68B Server chassis.

Product SKU
• SYS-5038MD-H8TRF (Black)
Motherboard
        MBD-X10SDD-F
Processor/Cache
CPU • Intel® Xeon® processor D-1541
• Socket FCBGA 1667
• CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz
System Memory (per node)
Memory Capacity • 4x 288-pin DDR4 DIMM slots
• Supports up to 128 GB DDR4 ECC RDIMM
• Supports up to 64 GB DDR4 ECC UDIMM
Memory Type • 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Size • 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
Expansion Slot
PCI-Express • 1x PCI-E 3.0 x8 Low-profile slot
• 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
• 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2)
Network Devices (per node)
Micro-LP NIC • Intel® i350 GbE controller
• Dual RJ-45 connectors
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/O Acceleration Technology (I/O AT)
• MicroLP Adapter Matrix (Networking options)
On-Board Devices (per node)
Chipset • System on Chip (SoC)
SATA

• SATA3 (6Gbps) via SoC

IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• ASPEED AST2400 BMC
Headers

• 1x Type A USB 3.0

Graphics • ASPEED AST2400 Graphics (BMC with Graphic controller)
Input/Output (per node)
SATA

• 2x SATA3 (6Gbps) ports

LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
KVM • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features

• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

Rear Window (each node)
Switch • Power / UID


Chassis
Form Factor • 3U
Model CSE-938BH-R1K68B
Dimension and Weight
Height • 5.21" (132 mm)
Width • 17.26" (438 mm)
Depth • 23.2" (589 mm)
Gross Weight • 88 lbs (39.92 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
LED • Power LED
• Node status LED
Drive Bays (per node)
Internal • 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
• Enterprise SATA HDD only recommended
System Cooling
Fans • 4x 8cm Heavy duty fans with optimal cooling zone
Power Suplly (76mm Width)
  1600W Redundant Power Supplies with PMBus
Total Output Power • 800W/1600W
Dimension
(W x H x L)
• 76 x 40.4 x 336 mm
Input • 100-140Vac / 10-7A / 50-60Hz
• 180-240Vac / 11-8A / 50-60Hz
+12V • Max: 66A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
