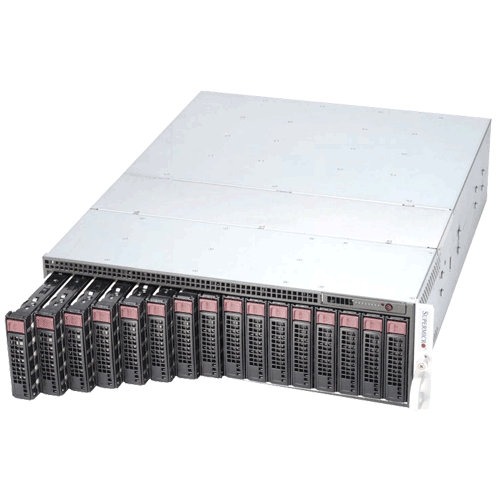

  • Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF - angle

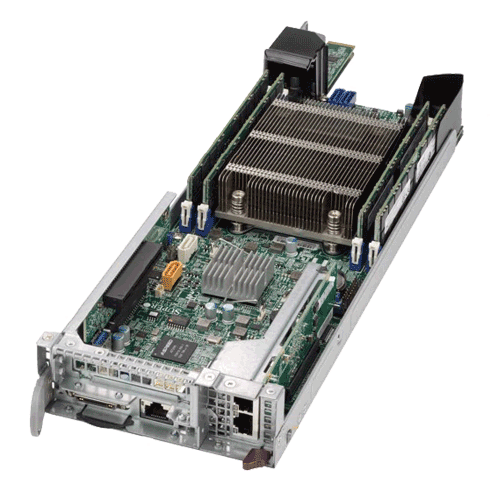

  • Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF - node

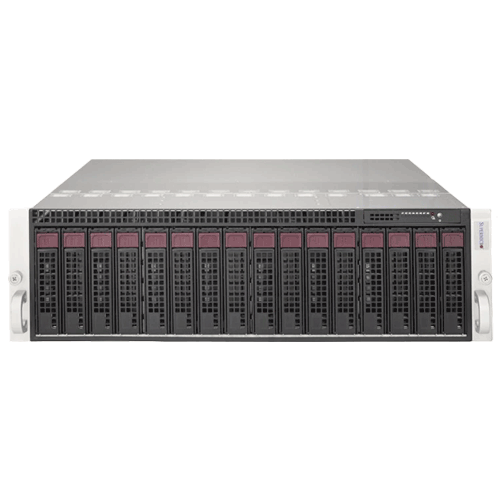

  • Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF - front

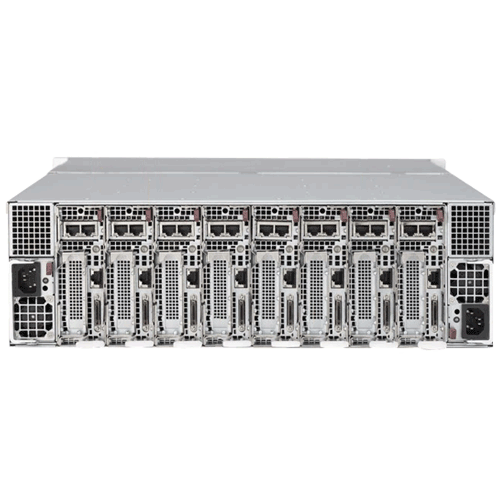

  • Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF - rear

Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF

Call for price.

Quick Overview:

Key Features:
• Supports Intel® Xeon® processor
• Up to 512GB of memory
• 2x 3.5" Hot-swap SATA3/SAS drive bays
• 2x GbE LAN ports via Intel® i350
• 4x 8cm heavy duty hot-swap fans
• 1620W Redundantpower supplies Platinum (per system)


Supermicro 3U MicroCloud SuperServer SYS-5038MR-H8TRF

Product SKU
• SYS-5038MR-H8TRF (Black)
  • Super X10SRD-F
CPU • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†*/ v3* family (up to 145W TDP)
• Single Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
Note • † BIOS version 2.0 or above is required
  * Ambient temperature should be no higher than 25°C
System Memory
Memory Capacity • 4x 288-pin DDR4 DIMM slots
• Up to 512GB ECC 3DS LRDIMM
• Up to 256GB ECC LRDIMM
• Up to 128GB ECC RDIMM
Memory Type

• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs

DIMM Sizes

• LRDIMM: 64GB, 32GB
• RDIMM: 32GB, 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset • Intel® C612 chipset
• SATA 3.0 (6Gbps) with RAID 0, 1

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Aspeed AST2400 BMC

Headers • 1x USB Type A 3.0, TPM ready

• Aspeed AST2400 BMC

Network Devices (per node)
MicroLP NIC • Intel® i350, 2x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
• MicroLP Adapter Matrix (Networking options)
Input/Output (per node)
Serial SATA • 2x SATA 3.0 ports (6Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
KVM • 1x VGA, 1x COM, and 2x USB 2.0 (with KVM dongle) ports
System BIOS

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup

Rear Window (each node)

• Power / UID

Form Factor • 3U
Model CSE-938BH-R1620B
Dimension and Weight
Height • 5.21" (132.5 mm)
Width • 17.26" (438.4 mm)
Depth • 23.2" (589 mm)
Gross Weight • 88 lbs (39.92 kg)
Available Colors • Black
Front Panel

• Power On/Off button


• Power LED
• Node status LED

Expansion Slots (per node)

• 1 (x8) PCI-E 3.0 Low-profile slot
• 1x Micro-LP for Dual GbE (pre-installed), 10GbE or IB AOC option; MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)

• 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
• Enterprise SATA HDD only recommended

System Cooling

• 4x 8cm 11K RPM, 4-pin PWM cooling fans

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
PC Monitoring

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V


• Cooling zone


• Monitoring for CPU and chassis environment

Operating Environment/Compliance

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
