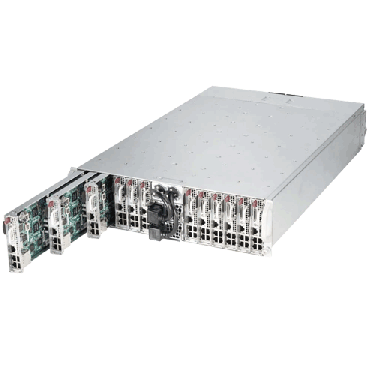

  • Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF - angle
  • Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF - node

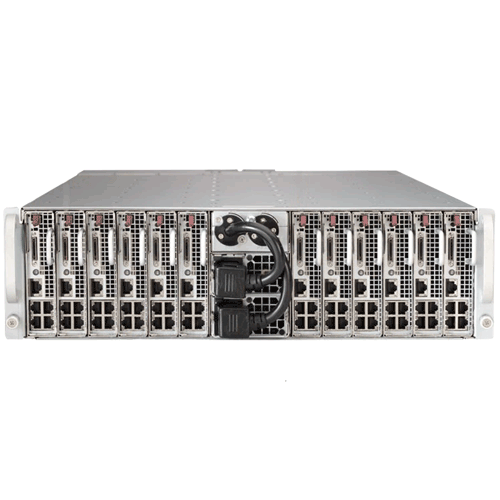

  • Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF - front
  • Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF - rear

Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF (Complete System Only)

Call for price.
SKU:SYS-5038MA-H24TRF

Quick Overview:

Key Features:
• Cloud Computing
• Supports Dual Intel® Atom processor
• Up to 64GB of memory
• 2x GbE LAN (Intel i354)
• 4x 9cm heavy duty hot-swap fans
• 1600W Redundantpower supplies Platinum (per system)

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPU, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro 3U MicroCloud SuperServer SYS-5038MA-H24TRF (Complete System Only)

Product SKU
SuperServer • SYS-5038MA-H24TRF (Black)
Motherboard
  • Super A1SA2-2750F
Processor/Cache
CPU • Dual FCBGA 1283
• Intel® Atom™ Processor C2750
• CPU TDP 20W (8-Core)
• System-on-Chip
System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slot
• Supports up to 64GB DDR3 VLP ECC UDIMM memory
Memory Type

• 1600/1333MHz ECC DDR3 SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes

• 16GB, 8GB, 4GB, 2GB
Memory Voltage

• 1.5 V, 1.35 V
On-Board Devices
Chipset • Avoton SOC
SATA • 2x SATA3 (6Gbps)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• ASPEED AST2400 BMC

Graphics

• ASPEED AST2400 Graphics (BMC with Graphic controller)
Network Devices
Onboard NIC • SoC i354 GbE controller per node
• Dual RJ-45 connectors
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Input/Output (per node)
SATA • 4x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 dedicated IPMI LAN port
KVM • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features

• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Front Window
Switch

• Power Button
• Node Switch
Chassis
Form Factor • 3U
Model • CSE-939HA-R1K63B
Dimension and Weight
Height • 5.21" (132.5 mm)
Width • 17.5" (444.5 mm)
Depth • 29.5" (749.3 mm)
Gross Weight • 120 lbs (54.43 kg)
Available Colors • Black
Drive Bays
Internal

• 4x 2.5" fixed HDD bays (up to 48x 2.5" HDDs total)
• Enterprise SATA HDD and SSD only recommended

System Cooling
Fans

• 4x 9cm Heavy duty fans with optimal cooling zone
Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
 • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/135A; +5Vsb/4A
Certification • Platinum Level
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V

FAN

• Cooling zone
Temperature

• Monitoring for CPU and chassis environmentX
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.








 • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
