Supermicro SuperServer SYS-6029TP-HC0R
Product SKU |
|
|---|---|
| SYS-6029TP-HC0R | • SuperServer 6029TP-HC0R (Black) |

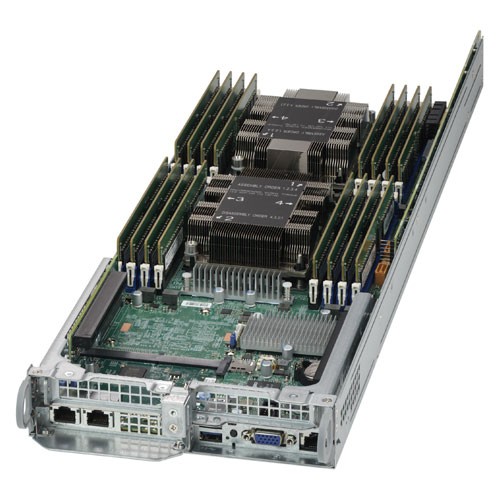

Motherboard |
|
|---|---|
| Super X11DPT-PS | |
Processor/Cache (per node) |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-165W with IVR |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory (per node) |
|
|---|---|
| Memory Capacity |
• 16 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SAS | • Broadcom 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support |
| Network Connectivity |
• Must bundle with at least one SIOM network card |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |

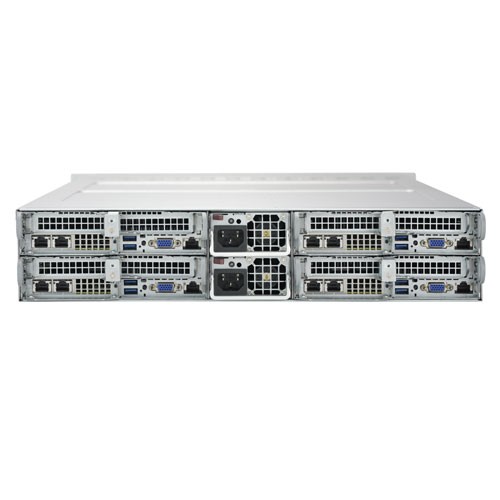

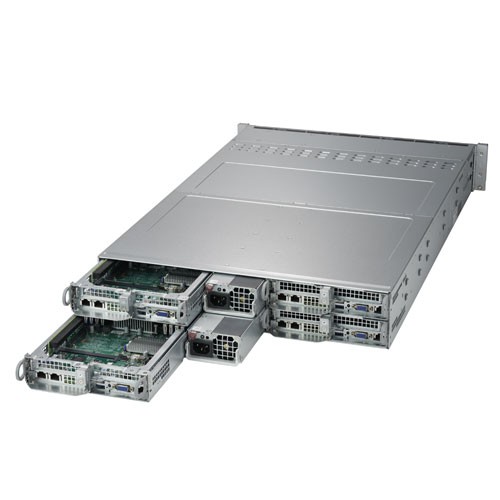

Input/Output (per node) |
|
|---|---|
| SAS | • 3 SAS3 (12Gbps) ports |
| LAN | • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports total (rear) |
| VGA | • 1 VGA port |
| Serial Port / Header | • 1 Fast UART 16550 port / 1 Header (internal) |
| Others | • 2 SATADOM support on the motherboard |
System BIOS |
|
|---|---|
| BIOS Type | • AMI 32MB SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM,SPM,SUM • SuperDoctor® 5 • Watchdog |
| Power Configurations | • ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 5+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
| Omni-Path Fabric CPUs | • Do not support |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-217HQ+-R2K20BP2 |
Dimension and Weight |
|
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 28.5" (724mm) |
| Gross Weight | • 90 lbs (40.9kg) |
| Available Color | • Black |

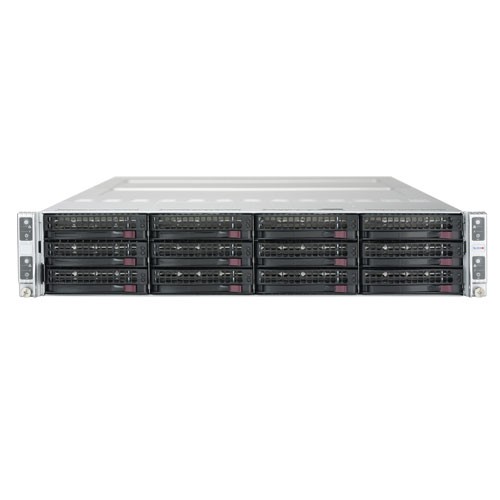

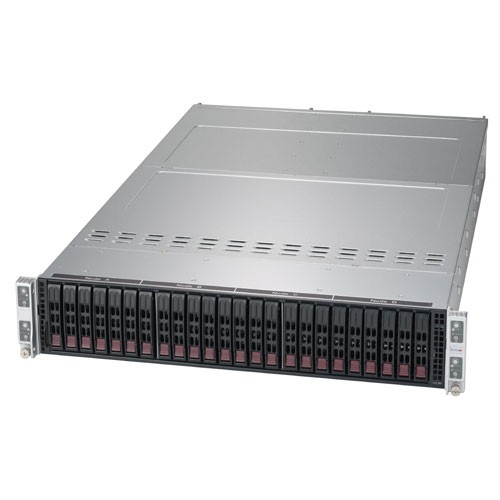

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • UID button |
| LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • Universal Information (UID) LED |
Expansion Slots (per node) |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 x16 Low-profile slots |
Drive Bays (per node) |
|
|---|---|
| Hot-swap |
• 3 Hot-swap 3.5" SAS/SATA HDD trays |
System Cooling |
|
|---|---|
| Fans | • 4 Heavy duty 8cm PWM fans with optimal fan speed control |
Power Supply |
|
|---|---|
| 2200W Redundant Power Supplies with PMBus | |
| Total Output Power and Input |
• 1200W with Input 100-127Vac • 1800W with Input 200-220Vac • 1980W with Input 220-230Vac • 2090W with Input 230-240Vac • 2090W with Input 200-220Vac • 2200W with Input 220-240Vac (for UL/cUL use only) • 2090W with Input 230-240Vdc (for CCC only) |
| AC Input Frequency |
• 50-60Hz |
| Dimension
(W x H x L) |
• 76 x 40 x 336 mm |
| +12V | • Max: 100A / Min: 0A (100-127Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 174.17A / Min: 0A (230-240Vac) • Max: 183.3A / Min: 0A (220-240Vac) |
| 5Vsb | • Max: 1A / Min: 0A |
| Output Type | • Backplanes (gold finger) |
| Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
