Details
|
Product SKU
| |
|---|---|

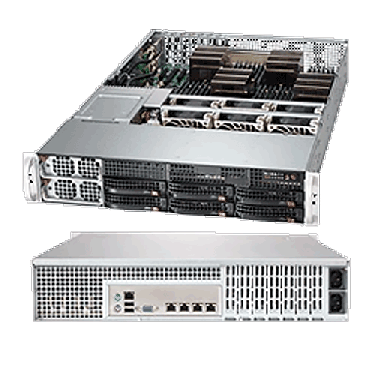

| AS-2042G-72RF4 | • A+ Server 2042G-72RF4 (Black) |
|
Motherboard
| |
|---|---|
| • Super H8QG7-LN4F | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Quad 1944-pin Socket G34 • Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support |
| Chipset | • AMD SR5690/SR5670/SP5100 Chipset |
|
System Memory
| |
|---|---|
| Memory Capacity | • 32 DIMM sockets • Support up to 1TB Registered ECC or 256GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 32 DIMMs • Quad channel memory bus • For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • AMD SP5100 (RAID 0, 1, 10) | SAS | • LSI 2208 8-port SAS2 controller • HW RAID 0, 1, 5, 6, 10, 50, 60 (1GB cache) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Intel® I350 controller, 4-Port Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA | • Matrox G200 16MB DDR2 graphics |
| Super I/O |
• Winbond® W83527 chip |
|
Input/Output
| SATA | • 6x SATA2.0 (3Gb/s) Ports | SAS | • SAS2 x8 | LAN | • 4 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 7x USB 2.0 ports • 2x Rear, 4x internal header, and 1x type A |
| VGA | • 1x VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • s
1x Fast UART 16550 serial port • 1x serial port header |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 2x PCI-E 2.0 x16 slots |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-828TQ+-R1K43LPB |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 28.2" (716mm) |
| Gross Weight | • 69 lbs (31.3kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 6x 3.5" SAS/SATA Hot-swap drive trays |
|
SAS/SATA Backplane
| |
|---|---|
• 1x 2U SAS / SATA backplane w/ SES-II |
|
|
System Cooling
| |
|---|---|
| Fans | • 6x 80mm 6500 RPM fans |
|
Power Supply
| |
|---|---|
| Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | • 100-240 V, 50-60 Hz, 15 Amp max |
| +12V |
• 100 Amp/115 Vac • 117 Amp/230 Vac |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 25 Amp • 12V: 0.6 Amp |
| Certification | • 80Plus Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, -12V Standby, sVBAT, HT, memory, chipset |
| FAN | • Up to 9-fan status tachometer monitoring • Up to nine 4-pin fan headers • Status monitor for speed control • 3-pin fan support (w/o speed control) • Low noise fan speed control (4-pin fan only) • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 9x fan connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
