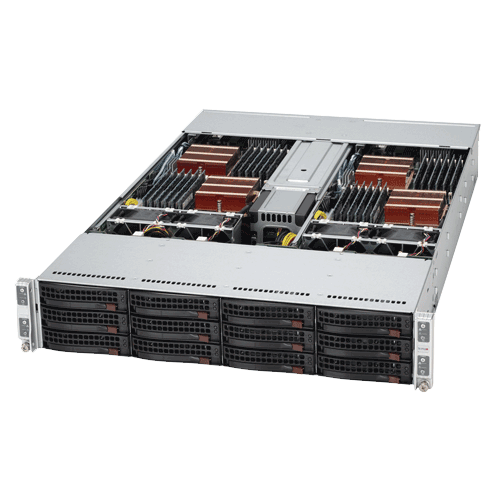

Supermicro 2U Twin2 Rackmount A+ AMD Opteron Server AS-2022TC-BIBQRF

Call for price.

Quick Overview:

Key Features:
• 4x hot-pluggable systems (nodes) in a 2U form factor
• Dual AMD Opteron™ 4000 series processors
• Up to 192GB of memory
• 1400W High-efficiency Redundant Power Supplies
• Mellanox Connect-X QDR Infiniband Controller
•3x Hot-swappable SATA Hard Drive Bays


Supermicro 2U Twin2 Rackmount A+ AMD Opteron Server AS-2022TC-BIBQRF
Product SKU
• A+ Server 2022TC-BIBQRF (Black)
  • Super H8DCT-IBQF
CPU • Dual 1207-pin Socket C32
• Supports two 8/6/4-Core ready AMD Opteron™ 4000 Series processors
• HT3.0 Link support
Chipset • AMD SR5670 + SP5100 Chipset
Note Supports 4000 series processors with Max ACP 75W (TDP 95W)
System Memory (per node)
Memory Capacity • 12 DIMM sockets
• Support up to 192GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 12 DIMMs
• Dual channel memory bus
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR3 1600/1333/1066 MHz Registered ECC or Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.35V or 1.5V

On-Board Devices (per node)
Infiniband • Mellanox ConnectX QDR Infiniband 40Gbps Controller
SATA • AMD SP5100 (RAID 0, 1)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel® 82576 controller, Dual-Port Gigabit Ethernet
• 10/100/1000BASE-T support

• Matrox G200eW 16MB DDR2

Super I/O

• Winbond® W83527 chip

Expansion Slots (per node)
PCI-E • 1x PCI-E 2.0 x16
Input/Output (per node)
Infiniband • 1 External QSFP Infiniband Connector
SATA • 3x SATA2.0 (3Gb/s) Ports
LAN • 2 RJ45 LAN ports
• 1 RJ45 Dedicated LAN supports IPMI
USB • 4x USB 2.0 ports
• 2x Rear, 1x header
VGA • 1x VGA port
Serial Ports • 1x Fast UART 16550 serial port
System BIOS (per node)

• 16Mb SPI Flash ROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• USB Keyboard Support
• SMBIOS 2.3

Form Factor • 2U Twin2 Rackmount
Model CSE-827H-R1400B
Dimension and Weight (stand alone chassis / package)
Height • 3.47" (88mm) / 11.22" (285mm)
Width • 17.25" (438mm) / 26.38" (670mm)
Depth • 28.5" (724mm) / 39.76" (1010mm)
Gross Weight • 85 lbs / 38.6 kg
Available Colors • Black
Front Panel

• 4x Power On/Off button
• 4x UID button


• 4x Power status LED
• 4x UID LED
• 4x Network activity LEDs
• 4x System overheat / fan failed / power failed LED

Drive Bays

• 3x 3.5" Hot-swappable SATA Hard Drive Bays (per node)
• Enterprise SATA HDD only recommended

System Cooling

• 4x PWM fans w/ Optimal Fan Speed Control

Power Supply
  1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
• 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output
• 1100W: +12V/92A; +5Vsb/4A
• 1400W: +12V/116A; +5Vsb/4A
With Distributor • +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
Certification • 80Plus Gold Certified
PC Health Monitoring

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset
• CPU switching voltage regulator

FAN • Up to 4-fan status tachometer monitoring
• Up to four 4-pin fan headers
• Status monitor for speed control
• 3-pin fan support (w/o speed control)
• Low noise fan speed control (4-pin fan only)
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• +5V Standby Alert LED
Operating Environment / Compliance

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 30°C (50°F to 86°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
