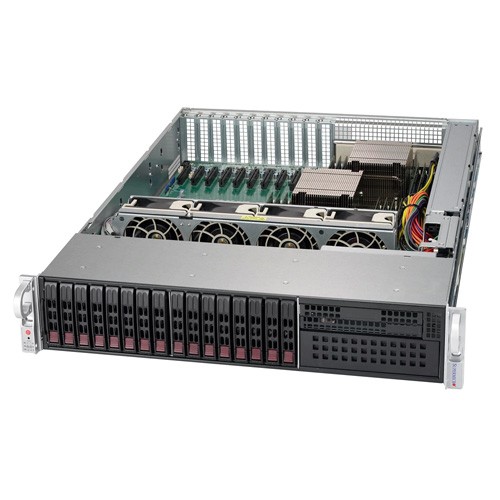

  • Supermicro 2U SuperChassis CSE-213XAC-R1K05LP

Supermicro 2U SuperChassis CSE-213XAC-R1K05LP

Call for price.
SKU:CSE-213XAC-R1K05LP

Quick Overview:

Key Features:
• 2U rackmount chassis
• Motherboard sizes: 15.2" x 13.2"
• 16 x 2.5" hot-swap SAS/SATA drive bay
• 1U 800/1000W Redundant Power Supply
• 11 low-profile expansion slot(s)
• 4 x 8cm high-performance PWM fan(s)

Details

Supermicro 2U SuperChassis CSE-213XAC-R1K05LP

Product SKU
CSE-213XAC-R1K05LP • SuperChassis 213XAC-R1K05LP
Form Factor
  • 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height

• 3.5" (89 mm)

Width

• 17.2" (437 mm)

Depth

• 25.6" (650 mm)

Gross Weight

• 58 lbs (26.31 kg)

Available Color

• Black

Expansion Slots
  • 11 low-profile expansion slot(s)
Drive Bays
  • 16 x 2.5" hot-swap SAS/SATA drive bay
Backplane
  • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
• Optional 2 x USB 2.0 ports
• Optional 1 x COM port tray
• 1 x standard 5.25" drive bay
Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs






















• 2 Network Activity LEDs
• HDD activity LED
• Power Status LED
• Power Fail LED
• System Information LED


















Motherboard (for CSE- 213XAC-R1K05LP)
  • X9DRX+-F
• X10DRX
Servers (for CSE- 213XAC-R1K05LP)
  • 2028R-TXR
System Cooling
Fans

• 4 x 8cm high-performance PWM fan(s)

System Monitoring


• Chassis intrusion switch

Operating Environment (System)
Operating
Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating
Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative
Humidity Range

• 8% - 90% (non-condensing)

Non-Operating
Relative Humidity
Range

• 5% - 95% (non-condensing)

Power Supply


• 1U 800/1000W Redundant Power Supply 38mm Width

Power Efficiency

• 96%

Total Output
Power and Input

• 800W with Input 100 - 127Vac
• 1000W with Input 200 - 240Vac

AC Input
Frequency

• 50-60Hz

Dimensions
(L x W x H)

• 360 x 38 x 40 mm

Output Type

• Backplanes (gold finger)

+12V

• Max: 66.7A (100Vac - 127Vac)
• Max: 83A (200Vac - 240Vac)

+5Vsb

• Max: 4A / Min: 0A

Power Distributor

• PDB-PT213X-3824
• O/P: 12V/100A
• +5V Max: 45A
• +3.3V Max: 24A
• -12V Max: 0.6A

Certification

• Titanium Certified

Regulatory (Power Supply)
Power Supply
Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class A
• UL/CB
• UL/CUL
