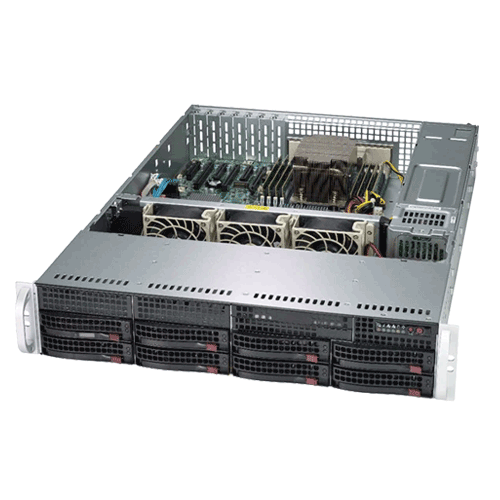

  • Supermicro 2U Rackmount A+ AMD EPYC Server AS-2013S-C0R Angle
  • Supermicro 2U Rackmount A+ AMD EPYC Server AS-2013S-C0R Top

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2013S-C0R

Call for price.
SKU:AS-2013S-C0R

Quick Overview:

Key Features:
• High End Enterprise Server
• Supports Single AMD EPYC™ 7000 Processor
• Up to 1TB of memory
• 2x 1GbE LAN ports via Intel® I210
• 8 hot-swap 3.5" SAS3/SATA3 Drive Bays
• 740W Redundant Platinum Level high-efficiency Power Supplies

Details

Supermicro 2U Rackmount A+ AMD EPYC Server AS-2013S-C0R

Product SKU
AS-2013S-C0R • A+ Server 2013S-C0R
Motherboard
  • H11SSL-C
Processor/Chipset
CPU • Single AMD EPYC™ 7000-series Processor (up to 200W)
• Socket SP3
Cores • Up to 32 Cores
Chipset • System on Chip (SoC)
System Memory
Memory Capacity • 8 DIMM slots
• Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage

• 1.2V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA/SAS • SATA3 (6 Gbps)
• Broadcom 3008 SAS3 (12 Gbps) controller
• IR mode; RAID 0, 1, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
Network Controllers • Intel® I210 Controller
VGA

• ASPEED AST2500 BMC
Expansion Slots
PCI Express • 3 PCI-E 3.0 x16 (low profile)
• 3 PCI-E 3.0 x8 (low profile)
M.2 • Interface: PCI-E 3.0 x4 (NVMe based)
• Form Factor: 2280, 22110
• Key: Onboard M-key
• Number of M.2: Single
Input/Output
SATA/SAS • 8 SATA3 (6 Gbps) /
• 8 SAS3 ports via Broadcom 3008
LAN • 2x 1GbE LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports
• 2 USB 2.0 ports
VGA • 1 VGA port
Others • 1 COM port (rear)
• 2 SATA DOM power connector
• TPM 1.2 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1
Chassis
Form Factor • 2U
Model • SC825TQ-R740LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (647mm)
Gross Weight • 69 lbs (31.2 kg)
Available Colors • N.A.
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Drive Bays
Hot-swap

• 8 hot-swap 3.5" SAS3/SATA3 Drive Bays
Peripheral Drives
DVD-ROM

• Slim DVD-ROM drive (optional)
Backplane
HDD Backplane

• Supports 8 SAS3/SATA3 3.5" HDD
System Cooling
Fans

• 3 heavy-duty PWM fans with optimal fan speed control
Power Supply with Power Distributor
  740W Redundant high-efficiency power supply with PMBus
AC Input • 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
 • 4 Amp @ +5V standby
• 61.7 Amp @ +12V
Certification • 80Plus Platinum Certified
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator
FAN • Fan status tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I²C Temperature Sensing Logic
LED • CPU / System Overheat LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec.






 • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
