  • Supermicro 1U Rackmount SYS-1025TC-TB

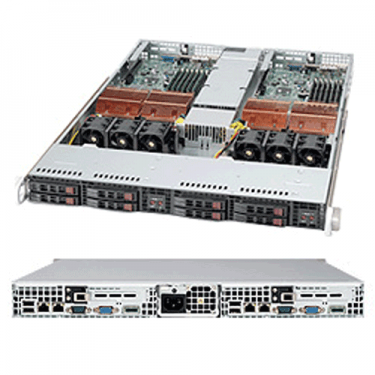

Supermicro 1U Twin Multi-Node Rackmount SYS-1025TC-TB Server

Call for price.
SKU:SYS-1025TC-TB

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Quad & Dual Core Intel® 64-bit Xeon® Support 1333 / 1066 MHz FSB
• Up to 48GB 667/533MHZ DDR2 ECC Registered DIMM
• 1 (x16) PCI-e slot (Low Profile)
• Intel® 82573V + 82573L Gigabit Ethernet Controller
• 4x Hot-swap 2.5" SATA Drive Bays
• 780W High-efficiency Power Supply


Details

SuperServer SYS-1025TC-TB 1U Rackmount

Supermicro SYS-1025TC-TB 1U Rackmount with 780W High-efficiency Power Supply, Intel® 5100 (San Clemente) chipset, support 4x 2.5" SATA Hot-swap drive bays,using
Super X7DCT + Super X7DCT Motherboard and SC809T-780B Rackmount Chassis


Product SKU
• SuperServer 1025TC-TB (Black)
Motherboard
        Super X7DCT + Super X7DCT
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz

System Bus • 1333 / 1066 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory (per node)
Memory Capacity • Six 240-pin DIMM sockets
• Supports up to 48 GB 667/533MHz DDR2 ECC Register DIMM memory
• Dual channels memory bus
Memory Type • 677/533MHzECC Register DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB, 8GB**
Memory Voltage • 1.8V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices (per node)
Chipset

• Intel® 5100 (San Clemente) chipset
• Intel® ICH9R SB

SATA • Intel ICH9R SB SATAII Controller
• RAID 0, 1, 5, 10 support (Windows only)
• RAID 0, 1, 10 support (Linux)
IPMI • Support for Intelligent Platform Management Interface v.2.0, v.1.5
• 200-pin IPMI slot (SIMSO(+))
• (Optional: AOC-SIMSO(+))
• KVM feature is available with dedicated LAN only
Network Controllers  • Intel® 82573V & 82573L Gigabit Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics • ATI ES1000 controller with 32 MB of video memory
Super I/O • Winbond W83627HG chip
Clock Generator • ICS9LPR501 chip
Input/Output (per node)
Serial ATA • Four Serial ATA ports
• Four SATA hard drives supported
LAN • 2x RJ45 LAN ports
USB

• 2 rear + 1 Type A connector + 2 headers (2 Ports)
• 5 total USB ports, 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Serial Port / Header

• 1 Fast UART 16550 serial port

System Bios
Bios Type • 16Mb SPI Flash with Phoenix ® BIOS
Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0/2.0/3.0
• USB Keyboard support
• Hardware BIOS Virus protection









Chassis
Form Factor • 1U Rackmount
Model SC809T-780B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (705mm)
Weight • 40 lbs (18.1kg)
Available Color • Black
Front Panel (per node)
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots (per node)
PCI-Express

• 1 (x16) PCI-e slot (Low Profile)

Drive Bays (per node)
Hot Swap

• 4x 2.5" SATA Hot-swap drive bays

SATA Backplane


• 1U SATA Backplane

System Cooling
Fans • 6x Cooling Fans
Power Supply
  780W AC to DC power supply w/ PFC
AC Input • 100-240V, 60-50Hz, 9.5-3.5Amp
+5V sb • 4 Amp
+12V • 65 Amp @ 180-240Vac
• 58 Amp @ 100-140Vac
Management
Software • Optional IPMI (Intelligent Platform Management Interface) 1.5 / 2.0
• SuperDoctor® III
• Watch Dog
• NMI
Power
Configuration
• ACPI Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
PC Health Monitoring
CPU • Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +5 Stdby, VBAT
• CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of three 4-pin fans
• 3x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend-state Indicator LED
Other Features • SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant 5/6, Server Exemption
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
