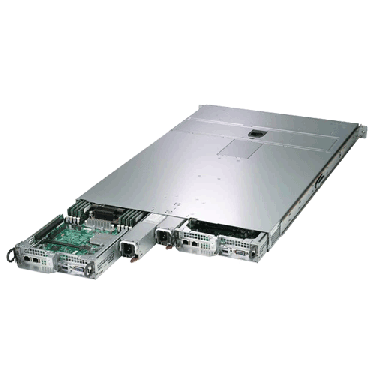

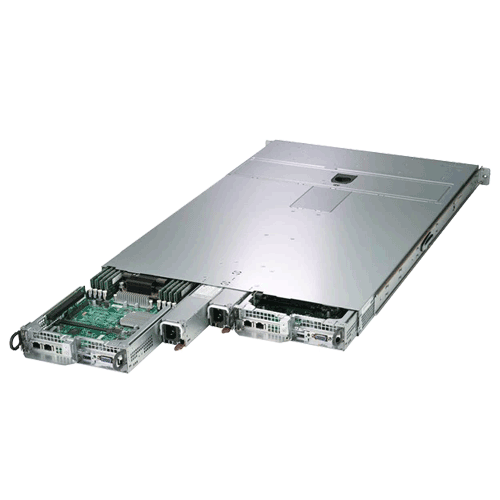

  • Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR - Angle

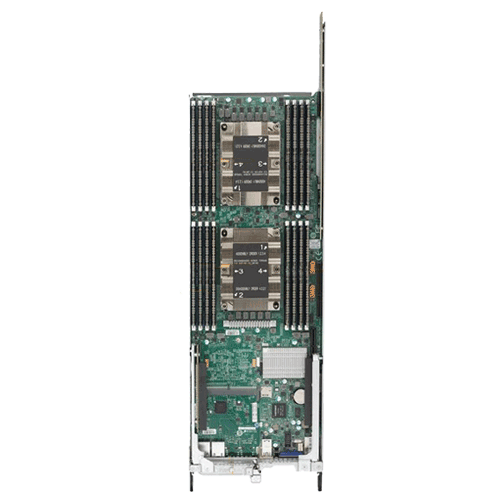

  • Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR - Node

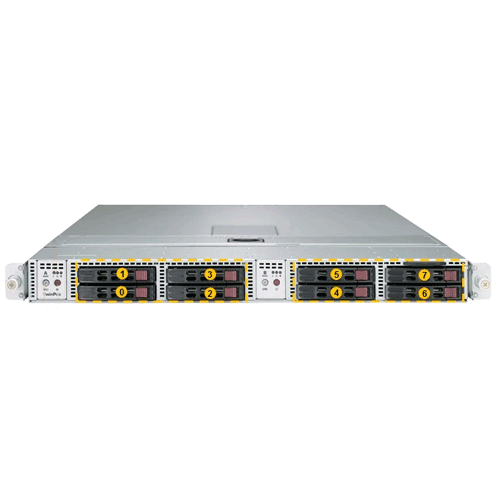

  • Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR - Front

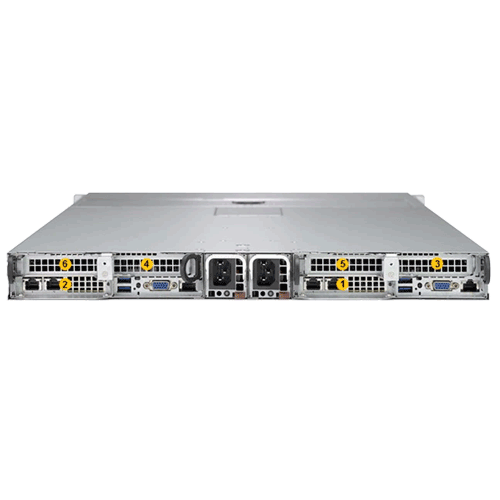

  • Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR - Rear

Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR

Call for price.
SKU:SYS-1029TP-DTR

Quick Overview:

Key Features:
• Two hot-pluggable systems (nodes) in a 1U form factor
• Supports Intel® Xeon® Scalable Processor
• Up to 2TB of memory
• 4 Hot-swap 2.5" SATA3 drive bays
• 3 Heavy duty counter rotating fans with air shroud
• Up to 1000W Redundant Power Supplies Titanium Level (96%)

Details

Supermicro 1U Rackmount TwinPro SuperServer SYS-1029TP-DTR

Product SKU
SYS-1029TP-DTR • SuperServer 1029TP-DTR (Black)
Motherboard (Two per System)
  • Super X11DPT-PS
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-145W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory (per node)
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices (per node)
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers • Barebones and Complete System must have at least one SIOM card installed per node
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output (per node)
SATA • 4 SATA3 (6Gbps) ports
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
VGA • 1 VGA port
Serial Port/Header • 1 Fast UART 16550 port / 1 Header (internal)
Others • 2 SuperDOM support on the motherboard
• 1 NVMe or 2 SATA M.2 (22x80/60/42 mm) support with option part: AOC-SMG3-2H8M2
• M.2 and SuperDOM are for OS boot and they cannot coexist
System BIOS
BIOS Type

• AMI 32MB SPI Flash ROM
Management
Software

• Intel® Node Manager
• Intel® Node Manager IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Power Configuration

• ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• ulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model • CSE-809H-R1K05P3
Dimension and Weight
Width • 17.2" (437mm)
Height • 1.7" (88mm)
Depth • 28.25" (718mm)
Gross Weight • 48.1 lbs (21.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 x16 Low-profile slots
• 1 SIOM card support

Note: Barebones and Complete System must bundle with SIOM
(With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function)

Drive Bays (per node)
Hot-swap

• 4 Hot-swap 2.5" SAS3/SATA3 drive bays
System Cooling
Fans

• 3 Heavy duty counter rotating fans with air shroud and optimal fan speed control
PowerStick Power Supply
  1000W 1U Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
 • 38 x 40 x 360 mm
Input • 100-127Vac / 9-7.5A / 50-60Hz
• 200-240Vac / 6-5A / 50-60Hz
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
+5Vsb • Max: 4A / Min: 0A
Output Type • Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec









 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
