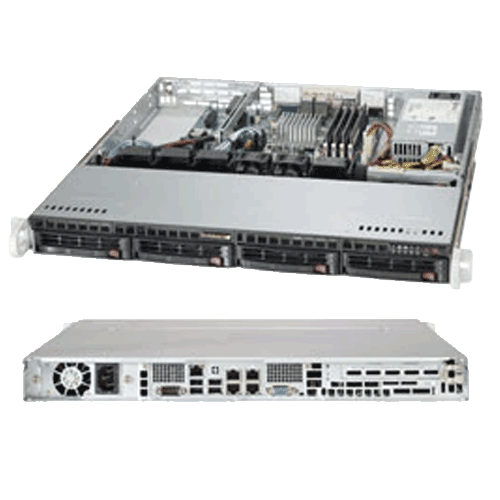

Supermicro 1U Rackmount SuperStorage SSG-5018A-MLHN4

Call for price.

SKU:SYS-5018A-MLHN4

Quick Overview:

Key Features:
• Low-power 4-Core Atom Avoton System on Chip Solution
• Space-efficient, compact design
• Fast to build and deploy
• Gateway, file-sharing, security
• Intel® Atom processor C2550, SoC, FCBGA 1283, 14W 4-Core
• Intel® System-on-Chip Design
• 4x 3.5" SATA HDD Bays
• 1x PCI-E 2.0 x8 slot
• Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM in 4 DIMM slots
• Quad GbE ports, IPMI w/ dedicated LAN
• DOM power connector
• 200W Low-noise power supply w/ PFC

Description

Details

SuperServer SYS-5018A-MLHN4

Supermicro SYS-5018A-MLHN4 1U Rackmount Barebone with 200W Low-noise power supply w/ PFC, Intel® Atom processor C2550 C2000 support 4x 3.5" Hot-swap SATA HDD Bays
using Supermicro A1SAM-2550F ATOM Motherboard and CSE-813MTQ-202CB 1U Chassis.

Product SKU
SYS-5018A-MLHN4	• SuperServer 5018A-MLHN4 (Black)

Motherboard
	Super A1SAM-2550F

Processor/Cache
CPU	• Intel® Atom™ Processor C2550 • CPU TDP 14W (4-Core) • FCBGA 1283 • System-on-Chip

System Memory
Memory Capacity	• 4x 240-pin DDR3 UDIMM sockets • Supports up to 64GB DDR3 ECC memory
Memory Type	• 1600/1333MHz ECC or non-ECC UDIMM SDRAM, 240-pin gold-plated DIMMs, x8 width only
DIMM Sizes	• 16GB, 8GB, 4GB, 2GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA	• C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps)
USB 2.0	• C2000 SoC
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST 2400 BMC
Network Connectivity	• C2000 SoC I354 Quad GbE controllers (MACs) • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	• BMC integrated ASPEED AST2400

Input/Output
Serial SATA	• 2x SATA3 (6Gbps) ports • 4x SATA2 (3Gbps) ports
LAN	• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
Serial Port	• 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM	• 1x SATA DOM (Disk on Module) power connector
VGA	• 1x VGA port
Others	• TPM 1.2 header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-813MTQ-202CB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 19.8" (503mm)
Gross Weight	• 31 lbs (14.1 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
PCI-Express	• 1x PCI-E 2.0 x8 slot via riser

Drive Bays
HDD	• 4x 3.5" Hot-swap SATA2 hard drive bays

Power Supply
	200W Low Noise AC-DC power supply with PFC
AC Voltage	• 100 - 240V, 50-60Hz, 3-1.5 Amp Max
+5V	• 16.0 Amp
+5V standby	• 2.0 Amp
+12V	• 15.0 Amp
-12V	• 0.8 Amp
+3.3V	• 17.0 Amp

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • ACPI 5.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
