  • Supermicro 1U Rackmount SuperServer SYS-5019A-FTN4

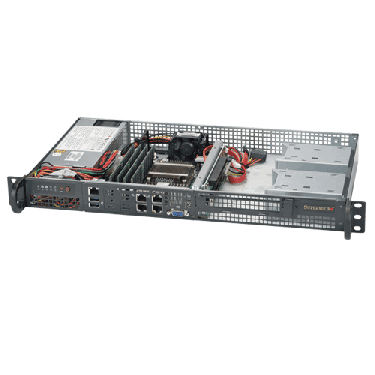

Supermicro 1U Rackmount SuperServer SYS-5019A-FTN4

Call for price.
SKU:SYS-5019A-FTN4

Quick Overview:

Key Features:
• Network Security Appliance | Edge Computing Server
• Virtualization Server
• Intel® Atom® processor C3758, Single socket FCBGA 1310; 8-Core, TDP 25W
• 2x 3.5" or 4x 2.5" internal drive bays
• 1 PCI-E 3.0 x4, 1 M.2 (M key for SSD, 2242/2280, PCI-E 3.0 x2 or SATA3)
• Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 DIMM slots
• 4 1GbE LAN, 1 dedicated IPMI LAN
• 2 USB 2.0, 1 VGA, 1 SuperDOM, TPM
• 2x 40x28mm 4-pin PWM fans, optional 1x 40x28mm 4-pin fan
• 200W Low-noise AC-DC power supply


Details

Supermicro SuperServer SYS-5019A-FTN4
Product SKU
• SuperServer 5019A-FTN4 (Black)
Motherboard
    Super A2SDi-8C-HLN4F
Processor/Cache
CPU • Intel® Atom® processor C3758
• FCBGA 1310 supported
• CPU TDP support 25W
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes • 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SoC controller for 4 SATA3 (6Gbps) ports
Network Connectivity • Quad Gigabit Ethernet LAN via Intel® C3000 SoC
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • BMC integrated ASPEED AST2400
Input/Output
SATA

• 4 SATA3 (6Gbps) ports

LAN • 4 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
DOM • 1 SATA DOM (Disk on Module) power connector
VGA • 1 VGA Port
Others • TPM header
System BIOS
BIOS Type • AMI UEFI
BIOS Features • Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Chassis
Form Factor • 1U Rackmount
Model CSE-505-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slots
PCI-E • 1 PCI-E 3.0 x4 slot
• 1 M.2 PCI-E 3.0 x2, M Key 2242/2280
Drive Bays
HDD • 2x 3.5" or 4x 2.5" internal hard drive bays (optional) *
System Cooling
Fans • 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • 80 Plus Gold Certified
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
