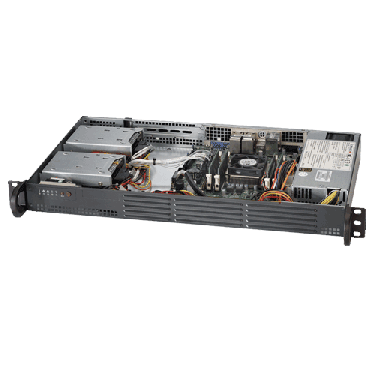

  • Supermicro 1U Rackmount SuperServer SYS-5019A-12TN4 -TopAngle
  • Supermicro 1U Rackmount SuperServer SYS-5019A-12TN4 -FrontView

Supermicro 1U Rackmount SuperServer SYS-5019A-12TN4

Call for price.
SKU:SYS-5019A-12TN4

Quick Overview:

Key Features:
• Virtual Router | Firewall Application | Virtualization
• Low Power, Low Cost Applications
• Intel® Atom® processor C3850, Single socket FCBGA 1310; TDP 25W TDP 25W
• 4 internal 2.5" drive bays or 2 internal 3.5" drive bays
• 1 PCI-E 3.0 x4, 1 mini PCIe with mSATA support (half card only)
• Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, up to DDR4-2400MHz, in 4 DIMM slots
• 4x 1GbE LAN, 1 dedicated IPMI LAN
• 2 USB 3.0, 1 VGA, 1 SATA support SuperDOM, TPM
• 2x 13K RPM cooling fans
• 200W Low-noise AC-DC power supply


Details

Supermicro SuperServer SYS-5019A-12TN4
Product SKU
SYS-5019A-12TN4 • SuperServer 5019A-12TN4 (Black)
Motherboard
    Super A2SDi-LN4F
Processor/Cache
CPU • Intel® Atom® processor C3850
• FCBGA 1310 supported
• CPU TDP support 25W
System Memory
Memory Capacity • 4 DDR4 DIMM sockets
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes • 16GB, 8GB, 4GB
Memory Voltage • 1.2V
Error Detection • Corrects single-bit errors
On-Board Devices
SATA • SoC controller for 4 SATA3 (6Gbps) ports
Network Connectivity • Quad Gigabit Ethernet LAN via Intel® I350-AM4
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • BMC integrated ASPEED AST2400
Input/Output
SATA

• 4 SATA3 (6Gbps) ports
LAN • 4 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
DOM • 1 SATA DOM (Disk on Module) power connector
VGA • 1 VGA Port
Others • TPM header
System BIOS
BIOS Type • AMI UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
Chassis
Form Factor • 1U Rackmount
Model • CSE-504-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 10 lbs (4.54 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slots
PCI-Express • 1 PCI-E 3.0 x4 slot
• 1 M.2 PCI-E 3.0 x4 with SATA support, M Key 2242/2280
Drive Bays
HDD • 4 internal 2.5" drive bays or 2 internal 3.5" drive bays
System Cooling
Fans • 2x 13K RPM PWM cooling fans, Optional 1x 40x28mm 4-PIN PWM Fan
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification







 • 80 Plus Gold Certified
