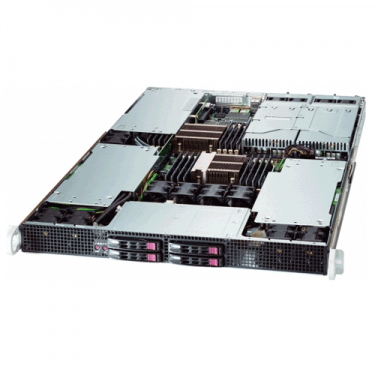

  • Supermicro 1U Rackmount SYS-1027GR-TRFT+ Angle
  • Supermicro 1U Rackmount SYS-1027GR-TRFT+ Front
  • Supermicro 1U Rackmount SYS-1027GR-TRFT+ Rear

Supermicro 1U Rackmount SuperServer SYS-1027GR-TRFT+

Call for price.

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 4x PCI-E 3.0 x16 slots (up to 2x double width GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® X540 10GBase-T Controller
• 4x Hot-swap 2.5" SATA3 Drive Bays
• 1800W High-efficiency Power Supply Platinum Level (94%+)
• 9x Counter rotating fans w/ optimal fan speed control
• Smart server management tools


SuperServer SYS-1027GR-TRFT+

Supermciro SYS-1027GR-TRFT+ 1U Rackmount Barebone with 1800W Redundant Power Supplies, Intel® C602 Chipset support 4x Hot-swap 2.5" SATA3 Drive Bays using Supermciro
X9DRG-HTF+ Server Motherboard and CSE-118GQTS-R1K8BP 1U Rackmount Chassis.

Product SKU
• SuperServer 1027GR-TRFT+ (Black)
        Super X9DRG-HTF+
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required
  • Please contact WillJaya Technical support for additional information
GPU/Xeon Phi
• M2090, up to 130W CPU at 30°C
• M2075, up to 130W CPU at 35°C
• K10/K20/K20X/K1/K2 (Kepler), up to 130W CPU at 30°C
• Xeon Phi, up to 130W CPU at 30°C
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Connectivity

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA • Matrox G200eW

• 2 SATA 3.0 ports (6Gbps)
• 2 SATA 2.0 ports (3Gbps)

LAN • 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 2.0 ports
Video • 1x VGA Connector
Serial Port • 1x Serial header
System Bios

• 16Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup

Form Factor • 1U Rackmount
Model CSE-118GQTS-R1K8BP
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 30.6" (777mm)
Gross Weight • 48 lbs (21.8 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots

• 4x PCI-E 3.0 x16 slots (up to 2x double width GPU/Xeon Phi cards, optional)
• 1x PCI-E 3.0 x8 low-profile slot

Drive Bays
Hot Swap • 4x 2.5" Hot-swap drive bays
System Cooling
Fans • 9x counter-rotating fans with optimal fan speed control
Power Supply
  1800W (1+1) Redundant 1800W power supply with PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1800W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified (94%)
PC Health Monitoring
CPU • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 6-Phase-switching voltage regulator
FAN • Total of ten 4-pin PWM fans
• 10x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 10x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • Power Fail / Overheat LED
• Suspend-state Indicator LED
Other Features • SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
