Supermicro SuperServer SYS-6019P-WT
Product SKU |
|
|---|---|
| SYS-6019P-WT | • SuperServer 6019P-WT (Black) |
Motherboard |
|
|---|---|
| Super X11DDW-L | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-165W with IVR |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 12 DIMM slots • Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | • Dual LAN with Gigabit Ethernet from C621 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 4 SATA3 (6 Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 4 USB 3.0 ports (rear) |
| Video | • 1 VGA port |
| DOM | • 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| Bios Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • SSM, SPM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configuration | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-815TQC-605WB |
Dimension and Weight |
|
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 1.7" (43mm) |
| Depth | • 23.5" (597mm) |
| Gross Weight | • 46 lbs (20.9kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • UID button |
| LED |
• Power status LED • HDD activity LED • Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 x16 (FHHL) slots • 1 PCI-E 3.0 x8 (LP) slot • 1 PCI-E 3.0 x16 for Add-on-Module (AOM) • 1 PCI-E M.2 SSD slot |
Drive Bays |
|
|---|---|

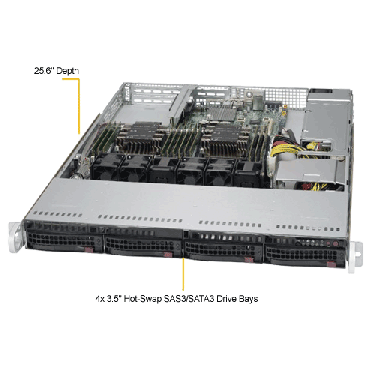

| Hot-swap | • 4 Hot-swap 3.5" SATA3 drive bays |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC |
Power Supply |
|
|---|---|
| 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching | |
| AC Input | • 100-240V, 50-60Hz |
| DC Output | • +3.3V: 15A • +5V: 18A •+5V standby: 3A • +12V: 49A • -12V: 0.5A |
| Certification | • 80 Plus Platinum Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec.
|
• Operating Temperature:
10°C to 35°C (50°F to 95°F)
|
