Supermicro SuperServer SYS-5019P-WT
Product SKU |
|
|---|---|
| SYS-5019P-WT | • SuperServer 5019P-WT (Black) |
Motherboard |
|
|---|---|
| Super X11SPW-TF | |
Processor/Cache |
|
|---|---|
| CPU | • Single Socket P (LGA 3647) • Intel® Xeon® Scalable Processors • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 6 DIMM slots • Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C622 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | • Dual 10GBase-T LAN with Intel® X772 + X557 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 10 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) |
| Video | • 1 VGA port |
| Serial Port / Header | • 2 COM ports (1 rear, 1 header) |
| SuperDOM | • 2 SuperDOM (Disk on Module) ports with built-in power |
System BIOS |
|
|---|---|
| Bios Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configuration | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-815TQC-605WB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 46 lbs (20.87 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Information LED (temp., status) |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 x16 (FHFL) slots • 1 PCI-E 3.0 x8 (LP) slot |
Drive Bays |
|
|---|---|

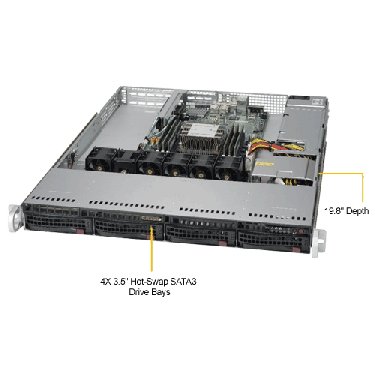

| Hot-swap | • 4 Hot-swap 3.5" SATA3 drive bays |
| M.2 | • M.2 mini-PCI-e support |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • 1 Slim DVD-ROM drive bay |
System Cooling |
|
|---|---|
| Fans |
• 5 counter-rotation 40x56mm PWM fans • 1 fan for AOC cooling (option) |
Power Supply |
|
|---|---|
| 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching | |
| AC Input | • 100-240V, 50-60Hz |
| DC Output | • +3.3V: 15A • +5V: 18A • +5V standby: 3A • +12V: 49A • -12V: 0.5A |
| Certification | • 80 Plus Platinum Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
